Sold out
PA-3020
Model: PAN-PA-3020 Firewall
Details: Palo Alto Networks PA-3020, Security appliance, GigE, 1U, rack-mountable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PA-3020 Overview

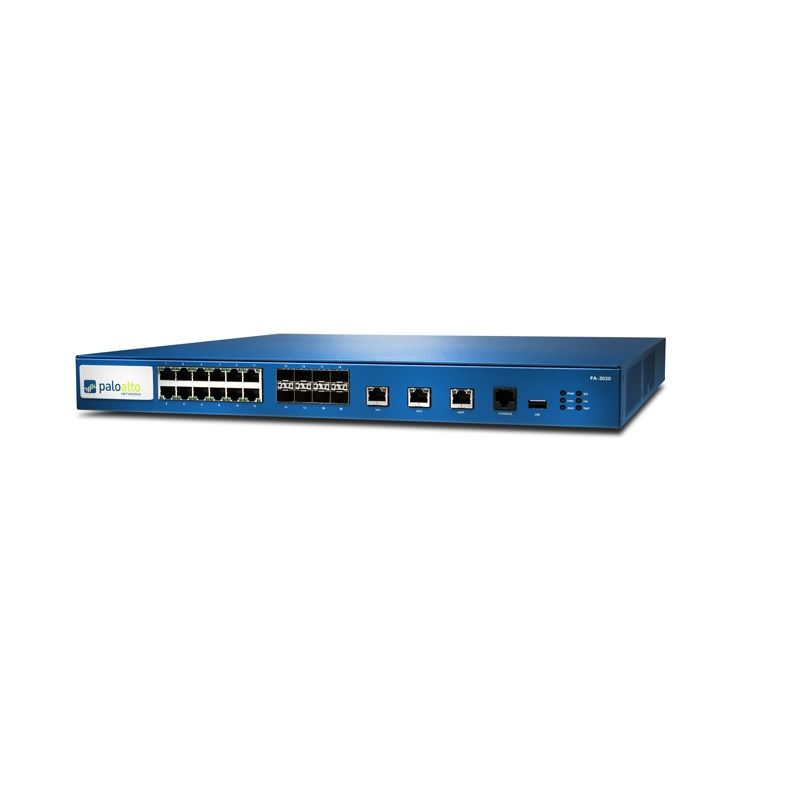

Quick Specs Figure 1 shows the appearance of PA-3020.
Table 1 shows the Quick Specs.
| Model | PA-3020 |
| Firewall throughput (App-ID enabled) | 2 Gbps |
| Threat prevention throughput | 1 Gbps |
| IPSec VPN throughput | 500 Mbps |
| New sessions per second | 50,000 |
| Max sessions | 250,000 |
| IPSec VPN tunnels/tunnel interfaces | 1,000 |
| GlobalProtect (SSL VPN) concurrent users | 1,000 |
| SSL inbound certificates | 25 |
| Virtual routers | 10 |
| Virtual systems (base/max) | 1/6 |
| Security zones | 40 |
| Max. number of policies | 2,500 |
| I/O | (12) 10/100/1000, (8) SFP optical gigabit |
| Management I/O | (1) 10/100/1000 out-of-band management port, (2) 10/100/1000 high availability, (1) RJ-45 console port |
| Storage Capacity | 120GB SSD |
| Power supply(Avg/Max power consumption) | Single 250W AC (150/200) |
| Max BTU/hr | 683 |
| Input Voltage (Input Frequency) | 100-240VAC (50-60Hz) |
| Max Current Consumption | 2A@100VAC |
| Max Inrush Current | 0.4 A @ 230 VAC, 0.96 A @ 120 VAC |
| Rack Mountable | 1U, 19″ standard rack |
| Dimensions | 1.75″H x 17″D x 17″W |
| Safety | UL, CUL, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A, TUV |
| Operating temperature | 32° to 122° F, 0° to 50° C |
| Non-operating temperature | -4° to 158° F, -20° to 70° C |
