Sold out
PA-5020
Model: PAN-PA-5020 Firewall
Details: Palo Alto Networks PA-5020, 5 Gbps firewall throughput, 2 Gbps threat prevention throughput
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PA-5020 Overview

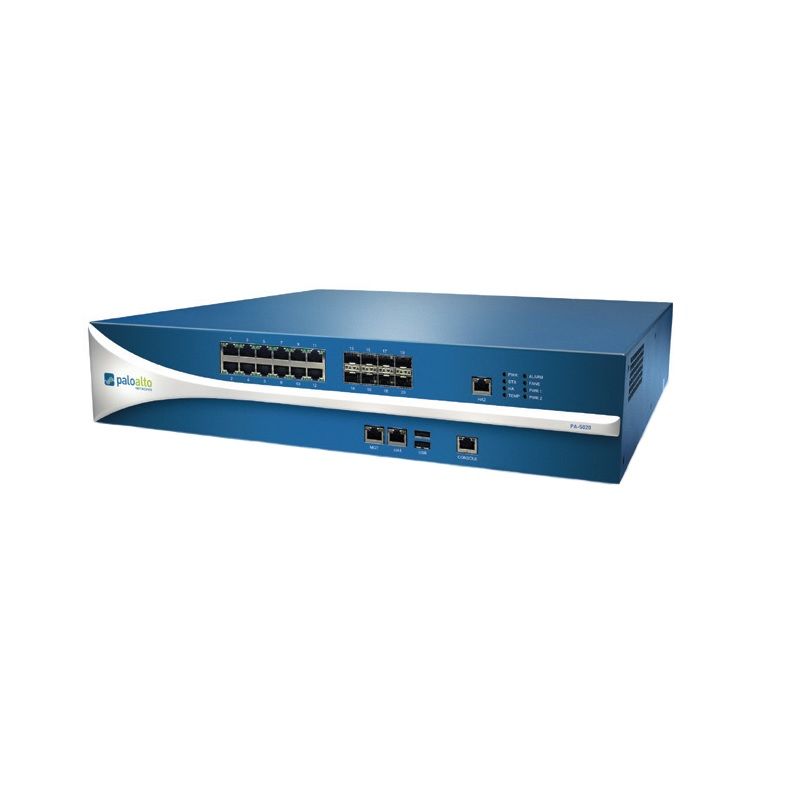

Quick Specs Figure 1 shows the appearance of PA-5020.
Table 1 shows the Quick Specs.
| Model | PA-5020 |
| Firewall throughput (App-ID enabled) | 5 Gbps |
| Threat prevention throughput | 2 Gbps |
| IPSec VPN throughput | 2 Gbps |
| New sessions per second | 120,000 |
| Max sessions | 1,000,000 |
| IPSec VPN tunnels/tunnel interfaces | 2,000 |
| GlobalProtect (SSL VPN) concurrent users | 5,000 |
| SSL decrypt sessions | 15,000 |
| SSL Inbound Certificates | 100 |
| Virtual routers | 20 |
| Virtual systems (base/max2) | 10/20* |
| Security zones | 80 |
| Max. number of policies | 10,000 |
| I/O | (12)10/100/1000, (8) Gigabit SFP |
| Management I/O | (2) 10/100/1000 high availability,(1) 10/100/1000 out-of-band management,(1) RJ45 console port |
| Storage Options | Single or dual solid state disk drives |
| Storage Capacity | 120GB, 240GB SSD, RAID 1 |
| Power supply (Avg/max power consumption) | Redundant 450W AC (270W/340W) |
| Max BTU/HR | 1,160 |
| Input Voltage (Input Frequency) | 100-240VAC (50-60Hz); -40 to -72 VDC |
| Max Current Consumption | 8A@100VAC, 14A@48VDC |
| Mean Time Between Failure (MTBF) | 6.5 Years |
| Max Inrush Current | 80A@230VAC; 40A@120VAC; 40A@48VDC |
| Rack Mountable | 2U, 19″ standard rack |
| Dimensions | 3.5″H x 20″D x 17.5″W |
| Weight (Stand alone device/as shipped) | 41lbs/55lbs |
| Safety | UL, CUL, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Certifications | NEBS Level 3, FIPS level 2, ICSA |
| Operating temperature | 32° to 122° F, 0° to 50° C |
| Non-operating temperature | -4° to 158° F, -20° to 70° C |
Get more information
Do you have any question about the PA-5020?
Contact us now via Live Chat or sales@metafinitivetech.com
