-5%
PA-5280
Model: PAN-PA-5280 Firewall
Details: Palo Alto Networks PA-5280, Security appliance, 40 Gigabit LAN, 100 Gigabit Ethernet, 3U, rack-mountable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PA-5280 Overview

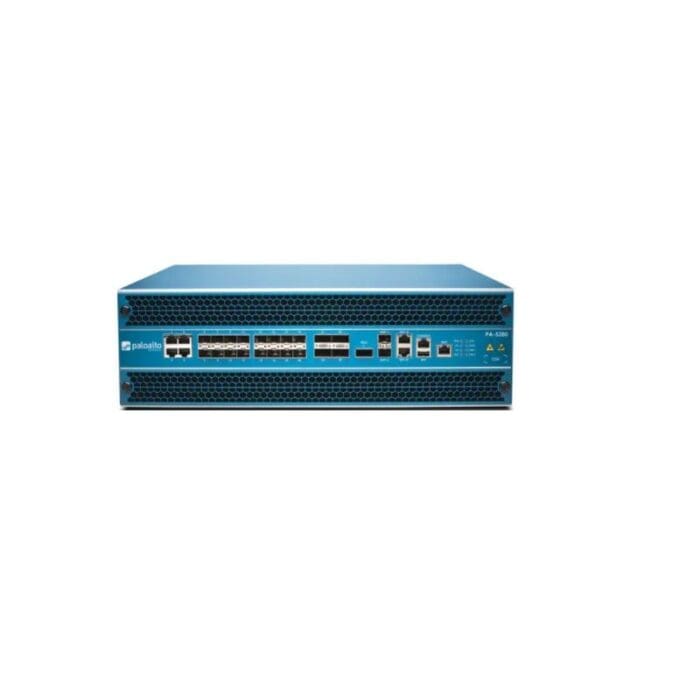

Quick Specs Figure 1 shows the appearance of PA-5280.
Table 1 shows the Quick Specs.
| Model | PA-5280 |
| Firewall throughput (App-ID enabled) | 68 Gbps |
| Threat prevention throughput | 30 Gbps |
| IPsec VPN throughput | 24 Gbps |
| Max sessions | 64,000,000 |
| New sessions per second | 462,000 |
| Virtual systems (base/max) | 25/225 |
| Interface Modes | L2, L3, Tap, Virtual wire (transparent mode)Point-to-point protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, Static routingPolicy-based forwardingMulticast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3Bidirectional Forwarding Detection (BFD) |
| IPv6 | L2, L3, Tap, Virtual Wire (transparent mode)Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryptionSLAAC |
| IPsec VPN | Key exchange: Manual key, IKE v1 and IKEv2 (pre-shared key, certificate-based authentication)Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512GlobalProtect large-scale VPN (LSVPN) for simplified configuration and management |
| VLANs | 802.1q VLAN tags per device/per interface: 4,094/4,094Aggregate interfaces (802.3ad), LACP |
| Network Address Translation (NAT) | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)NAT64, NPTv6Additional NAT features: Dynamic IP reservation, tun- able dynamic IP and port oversubscription |
| High Availability | Modes: Active/Active, Active/PassiveFailure detection: Path monitoring, interface monitoring |
| I/O | (4) 100/1000/10G Cu, (16) Gig/10Gig SFP/SFP+, (4) 40G/100G QSFP28 |
| Management I/O | (2) 10/100/1000, (1) 40G/100G QSFP28 HA, (1) 10/100/1000 out-of-band management, (1) RJ45 console port |
| Storage Options | Dual Solid State Disk Drives |
| Storage Capacity | 240GB SSD, RAID1, System Storage 2TB HDD, RAID1, Log Storage |
| Power (Max Power Consumption) | 870 Watts |
| Max BTU/hr | 2,970 |
| Power Supplies (base/max) | 1:1 Fully Redundant (2/2) |
| AC Input Voltage (input Hz) | 100-240VAC (50-60Hz) |
| AC Power Supply Output | 1200 Watt/power supply |
| Dimensions | 5.25”H X 20.5”D X 17.25”W |
| Safety | cCSAus, CB IEC60950-1 |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Operating temperature | 32°F to 122°F (0° to 50°C) |
| Non-operating temperature | -20° to 70°C (-4°F to 158°F) |
Get more information
Do you have any question about the PA-5280?
Contact us now via Live Chat or sales@metafinitivetech.com
