-5%
PA-7080
Model: PAN-PA-7080 Firewall
Details: Palo Alto Networks PA-7080, Security appliance
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PA-7080 Overview

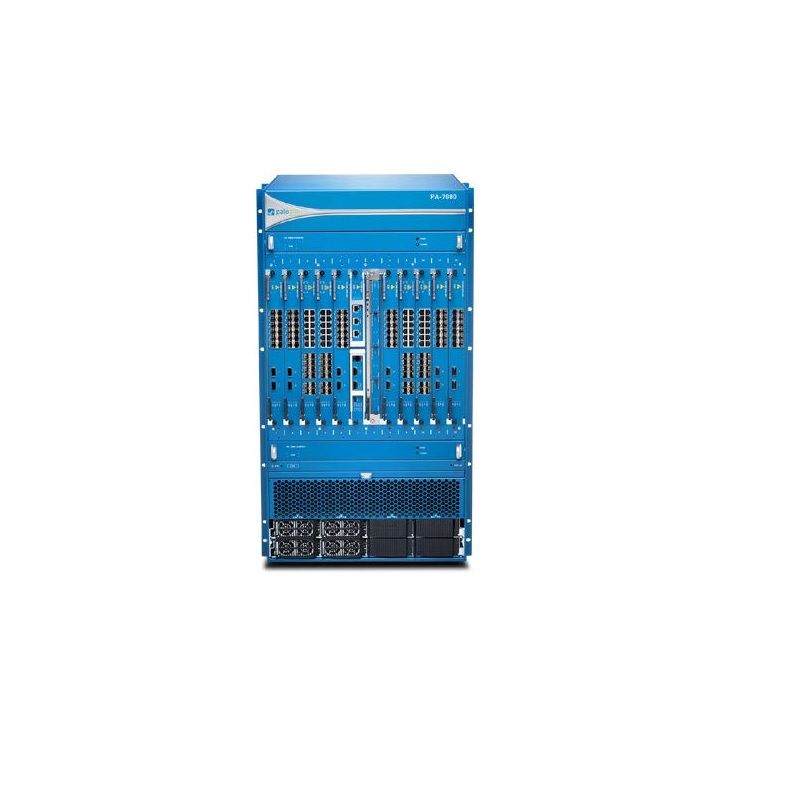

Quick Specs Figure 1 shows the appearance of PA-7080.
Table 1 shows the Quick Specs.
| Model | PA-7080 |
| Firewall throughput (App-ID enabled) | 200 Gbps |
| Threat prevention throughput(DSRI Enabled) | 160 Gbps |
| Threat prevention throughput | 100 Gbps |
| IPSec VPN throughput | 80 Gbps |
| New sessions per second | 1,200,000 |
| Max sessions | 80,000,000 |
| Virtual systems (base/max) | 25/225 |
| NPC Option 1: NPC-XM Option 11: | (20) QSFP+, (120) SFP+ |
| NPC Option 2: NPC-XM Option 21: | (120) 10/100/1000, (80) SFP, (40) SFP+ |
| Management I/O | (2) 10/100/1000, (2) QSFP+ high availability, (1) 10/100/1000 out-of-band management, (1) RJ45 console port |
| Storage Options | 80 GB SSD System Drive, 4×1 TB HDD on Log Processing Card |
| Storage Capacity | 2 TB RAID1 |
| AC input voltage (input Hz) | 90-305Vac (47 to 66 Hz) |
| AC power supply output | 2500 Watts @ 240Vac 1200 Watts @ 120Vac |
| DC input voltage | -36 to -75Vdc |
| DC power output | 2500 watts / power supply |
| Max current / power supply | 12Adc @ 240Vac In 75Adc @ >40Vdc In |
| Power supplies (base/max) | 4/8 |
| Max inrush current / power supply | 30Aac / 100Adc peak |
| Mean time between failure (MTBF) | Configuration dependent; contact your Palo Alto Networks representative for MTBF details. |
| Max BTU/hr | 20,132 |
| Rack mountable (dimensions) | 19U, 19” standard rack (32.22”H x 19”W x 24.66”D) |
| Weight (stand-alone device/as shipped) | 299.3 lbs. AC / 298.3 lbs. DC |
| Safety | cTUVus, cCSAus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Certifications | NEBS Level 3 |
| Operating temperature | 32° to 122° F, 0° to 50° C |
| Non-operating temperature | -4° to 158° F, -20° to 70° C |
Get more information
Do you have any question about the PA-7080?
Contact us now via Live Chat or sales@metafinitivetech.com
