PAC-2700WA
Model: PAC-2700WA CE12804SA-B1 Huawei CE12800 Series Data Center Switch Power Module
Details: 2700W AC Power Supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PAC-2700WA Overview

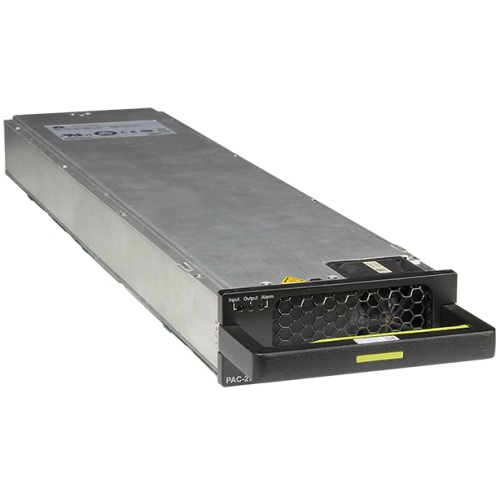

Quick Specs Figure 1 shows the appearance of PAC-2700WA.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | PAC-2700WA |
| Power Output | 2700W |
| Input Voltage Range | 180-264V AC |
| Frequency | 47-63Hz |
| Output Voltage | 54.5V DC |
| Current | 50A |
| Efficiency | 95% |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Cooling Method | Forced Air |
| Protection | Over Voltage, Over Current, Short Circuit |
| MTBF | 500,000 hours |
| Dimensions | 100mm x 50mm x 300mm |
| Connector Type | AC Input: IEC320-C14; DC Output: Terminal Block |
| Regulatory Approvals | CE, FCC, RoHS |
| Hot-Swap Capability | Yes |
| LED Indicators | Power, Fault |
| Altitude | Up to 3000 meters |
| Warranty | 2 Years |
