PAC150S12-R
Model: PAC150S12-R Accessory
Details: 150W AC power module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PAC150S12-R Overview

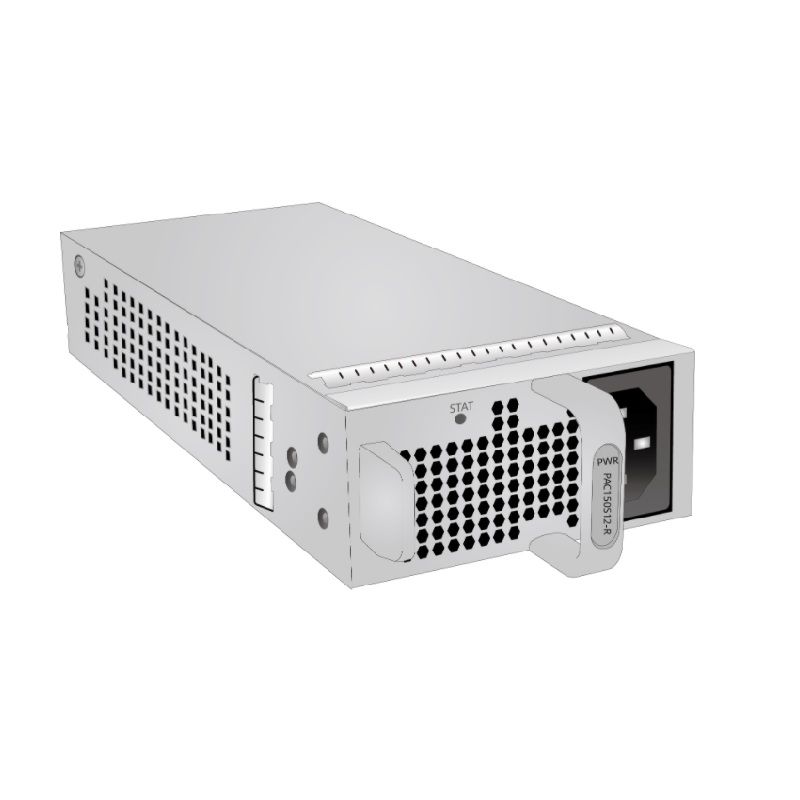

Quick Specs Figure 1 shows the appearance of PAC150S12-R.
Table 1 shows the Quick Specs.
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | 39.8 mm x 90 mm x 214.3 mm (1.57 in. x 3.54 in. x 8.44 in.) |
| Weight without packaging [kg(lb)] | 0.76 kg (1.68 lb) |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Rated output voltage [V] | 12 V DC |
| Rated output power [W] | 150 W |
| Power dissipation Mode | Natural heat dissipation |
| Hot swapping | Supported |
