PFL12-K10M
Model: PFL12-K10M – Dahua Traffic Enforcement Products
Details: Dahua 10 MP 1″ 12mm Fixed Lens
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFL12-K10M Overview

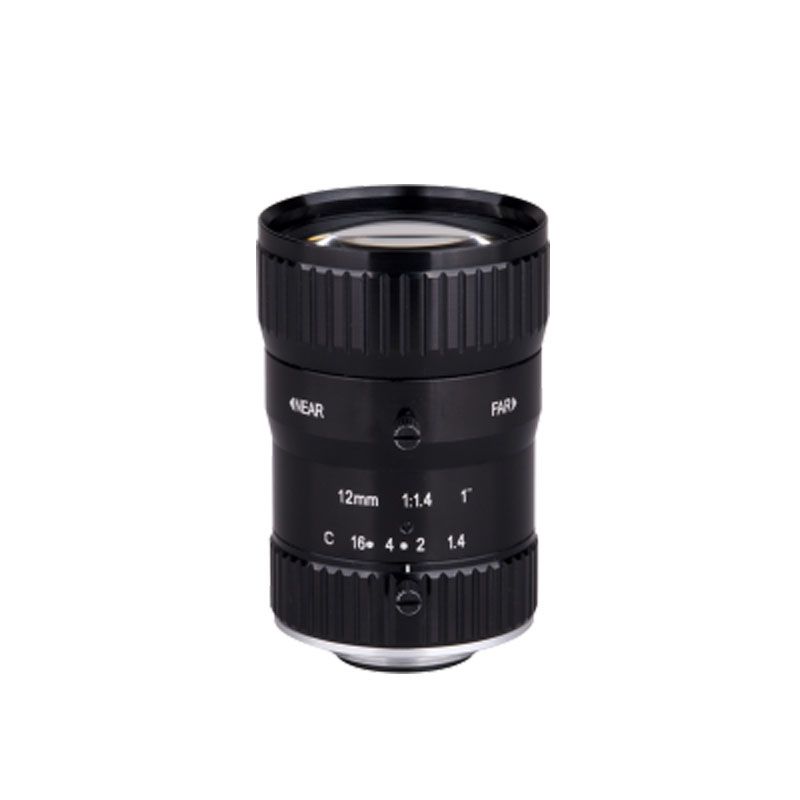

Quick Specs Figure 1 shows the appearance of PFL12-K10M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFL12-K10M |
| Image Sensor | 10 MP 1″ |
| Lens Type | Fixed Lens |
| Focal Length | 12mm |
| Aperture | F1.8 |
| Lens Mount | C-mount |
| Field of View | Horizontal: 24.6??, Vertical: 18.6?? |
| Minimum Object Distance | 0.2m |
| Back Focus Distance | 12.53mm |
| Focus Control | Manual |
| Iris Control | Manual |
| Operating Temperature | -10??C to +50??C |
| Storage Temperature | -20??C to +60??C |
| Dimensions | 61.5mm x 49mm |
| Effective Pixels | 3648 (H) x 2736 (V) |
| Optical Coating | Multi-layer |
| Distortion | Less than 1% |
| Compatible Sensors | 1″ image sensors |
| Signal to Noise Ratio | More than 50dB |
| Vibration Resistance | 10-150Hz, 0.2mm |
