Sold out
PFM320S-150
Model: PFM320S-150 – Dahua Cameras Accessories
Details: Dahua DC12V 150W Switching Power Supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM320S-150 Overview

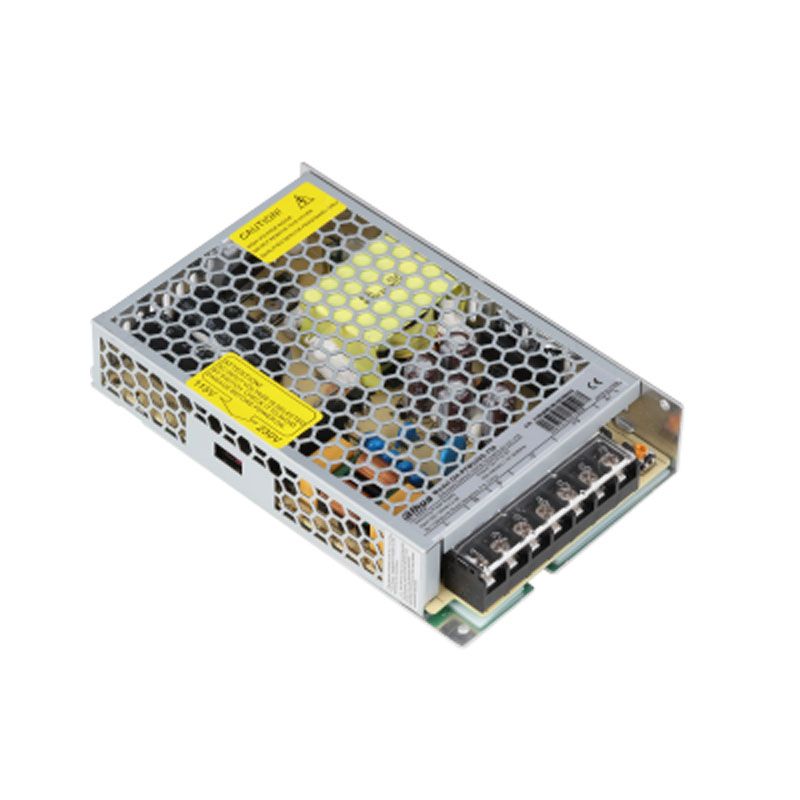

Quick Specs Figure 1 shows the appearance of PFM320S-150.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM320S-150 |
| Product Type | Switching Power Supply |
| Voltage Input | 100-240V AC |
| Frequency | 50/60Hz |
| Voltage Output | 12V DC |
| Power Output | 150W |
| Efficiency | 85% |
| Output Current | 12.5A |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% RH (non-condensing) |
| MTBF | 200,000 hours |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over-voltage Protection | Yes |
| Cooling | Natural Air Cooling |
| Connector Type | Terminal Block |
| Safety Standards | CE, FCC |
| Dimensions | 200mm x 110mm x 50mm |
| Certification | RoHS |
