PFM321S-75

Original price was: $26.00.Current price is: $24.70.

Model: PFM321S-75 – Dahua Cameras Accessories
Details: Dahua DC24V 75W Switching Power Supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Compare
Add to wishlist
SKU: PFM321S-75 Categories: , , ,
Description

PFM321S-75 Overview

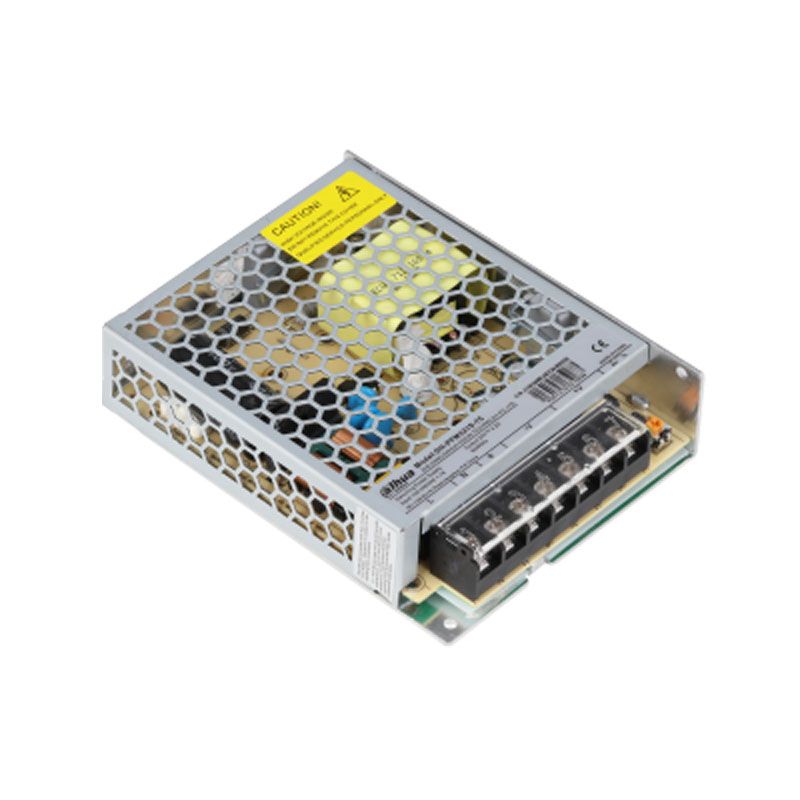

Quick Specs Figure 1 shows the appearance of PFM321S-75.

Table 1 shows the Quick Specs.

Model DH-PFM321S-75
Input Voltage Range 90~264Vac
Efficiency 88.0% (@230Vac)
OutputVoltage 24Vdc(terminal output)
Out Voltage Tolerance ±5%
Adjustable Range for DC Voltage ±10% (21.6Vdc~26.4Vdc)
Rated Output Current 3.2A
Output Power 75W
No Load Power Consumption <0.4W
Surge Protected Line to ground:±2000VLine to line:±1000V
ESD Contact discharge:±6000VAir discharge:±8000V
Working Temperature -20℃~+50℃(60% output at +70℃)-4℉~+122℉(60% output at +158℉)
Working Humidity <90% RH
Weight 0.3kg(0.44lb)
Dimension(LxWxH) 129mmx97.5mmx30mm (5.08”x3.84“x1.18”)
Installation Wall mount/Ceiling mount
Color Metallic silver
Certification CE, FCC
