PFM343-19CH
Model: PFM343-19CH – Dahua Cameras Accessories
Details: Dahua CCTV Distributed Power Supply box
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM343-19CH Overview

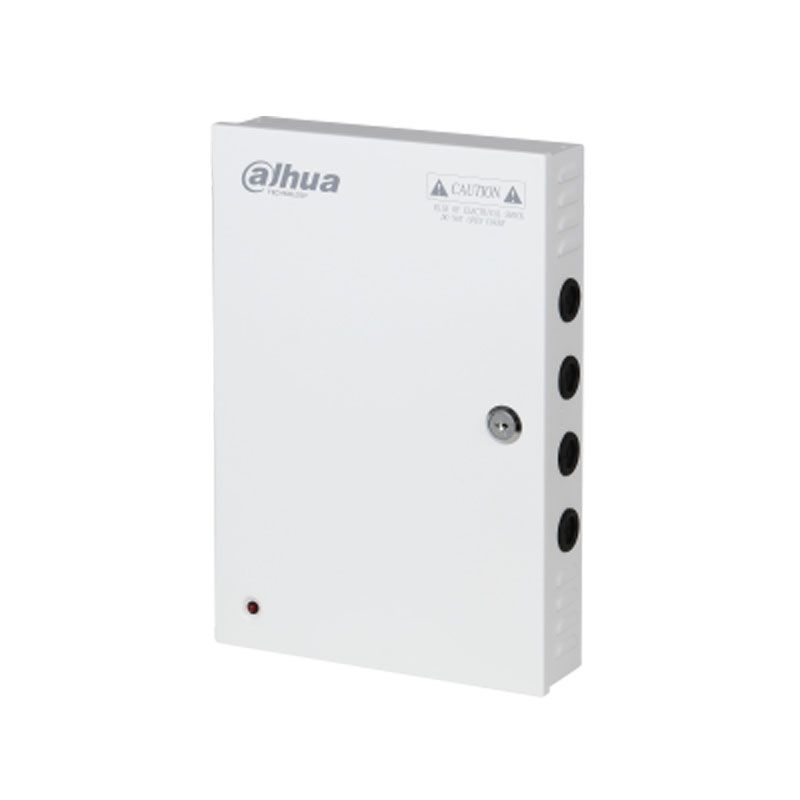

Quick Specs Figure 1 shows the appearance of PFM343-19CH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM343-19CH |
| Type | CCTV Distributed Power Supply Box |
| Input Voltage | 100-240V AC |
| Output Voltage | 12V DC |
| Output Channels | 19 Channels |
| Current Capacity | Each channel 1.1A |
| Total Power Output | 250W |
| Surge Protection | Yes |
| Short Circuit Protection | Yes, Each Channel |
| Over Voltage Protection | Yes |
| Over Current Protection | Yes |
| Output Ripple | Less than 100mV |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Material | Metal |
| Color | White |
| Dimensions | 322mm x 405mm x 95mm |
| Mounting Type | Wall Mount |
| LED Indicators | Power On/Off, Output Status |
| Certifications | CE, FCC, RoHS |
