PFM371-M275
Model: PFM371-M275 – Dahua Cameras Accessories
Details: Dahua Solar panel
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM371-M275 Overview

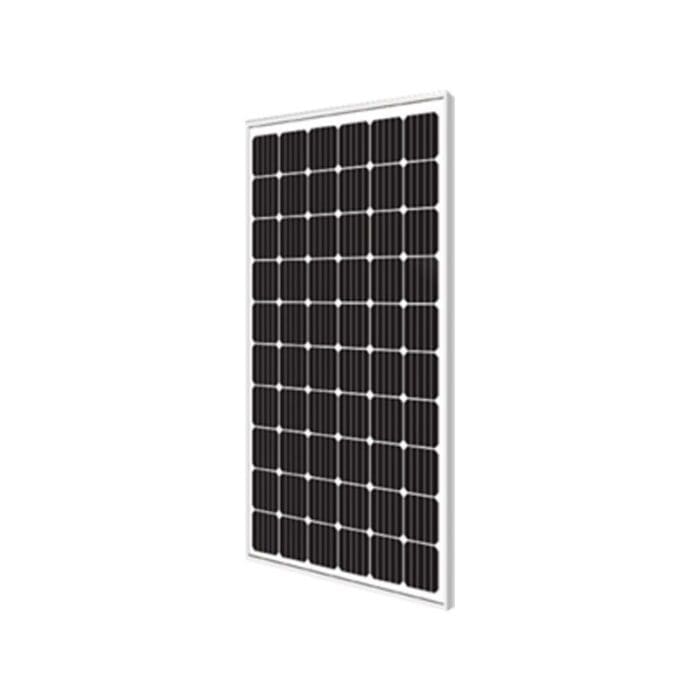

Quick Specs Figure 1 shows the appearance of PFM371-M275.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM371-M275 |
| Type | Solar Panel |
| Material | Monocrystalline Silicon |
| Max Power Output | 275W |
| Voltage at Pmax (Vmp) | 31.1V |
| Current at Pmax (Imp) | 8.85A |
| Open Circuit Voltage (Voc) | 38.3V |
| Short Circuit Current (Isc) | 9.48A |
| Maximum System Voltage | 1000V DC (IEC) |
| Series Fuse Rating | 15A |
| Module Efficiency | 16.8% |
| Dimensions | 1640mm x 992mm x 35mm |
| Frame Material | Anodized Aluminium Alloy |
| Cell Orientation | 60 cells (6×10) |
| Glass | 3.2mm tempered glass |
| Junction Box | IP67 rated |
| Connector Type | MC4 compatible |
| Operating Temperature | -40°C to +85°C |
| Application Class | A |
| Fire Performance | Type 1 |
| Warranty | 10 years product warranty, 25 years linear power output warranty |
