PFM371-M330
Model: PFM371-M330 – Dahua Cameras Accessories
Details: Dahua Solar panel
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM371-M330 Overview

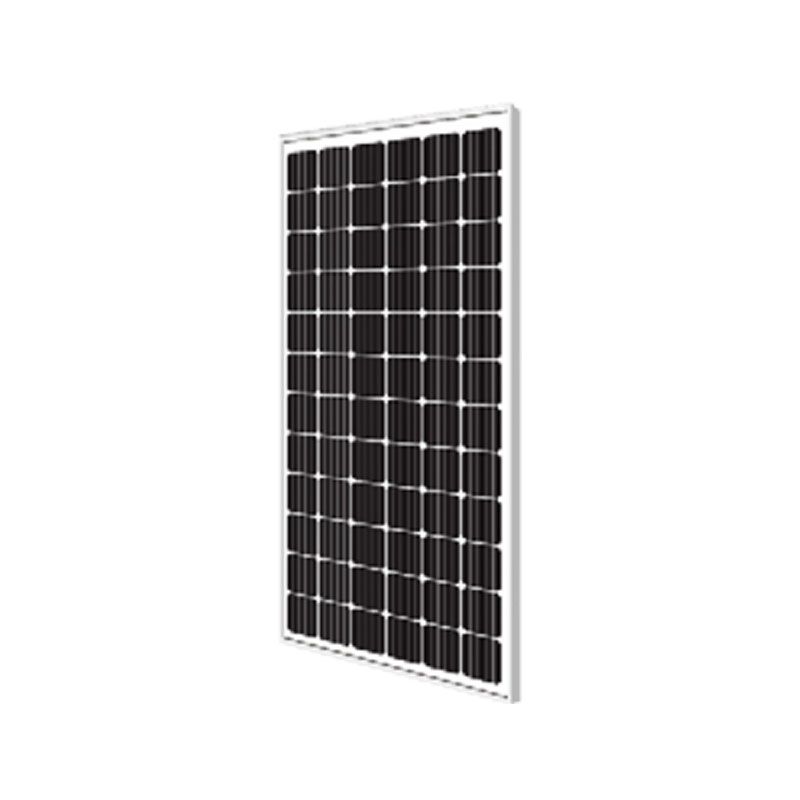

Quick Specs Figure 1 shows the appearance of PFM371-M330.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM371-M330 |
| Type | Solar Panel |
| Power Output | 330 W |
| Cell Type | Monocrystalline |
| Number of Cells | 60 |
| Maximum System Voltage | 1000 V DC |
| Open Circuit Voltage (Voc) | 40.8 V |
| Short Circuit Current (Isc) | 8.8 A |
| Maximum Power Voltage (Vmp) | 33.5 V |
| Maximum Power Current (Imp) | 7.9 A |
| Module Efficiency | 19.5% |
| Dimensions | 1650mm x 992mm x 35mm |
| Junction Box | IP68 |
| Frame Material | Anodized Aluminum Alloy |
| Temperature Range | -40°C to +85°C |
| Connector Type | MC4 Compatible |
| Application Class | Class A |
| Front Glass | 3.2mm Tempered Glass |
| Warranty | 10 Years Product Warranty, 25 Years Performance Warranty |
