PFM920I-5EUN-C
Model: PFM920I-5EUN-C – Dahua Cameras Accessories
Details: Dahua UTP CAT5e Cable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM920I-5EUN-C Overview

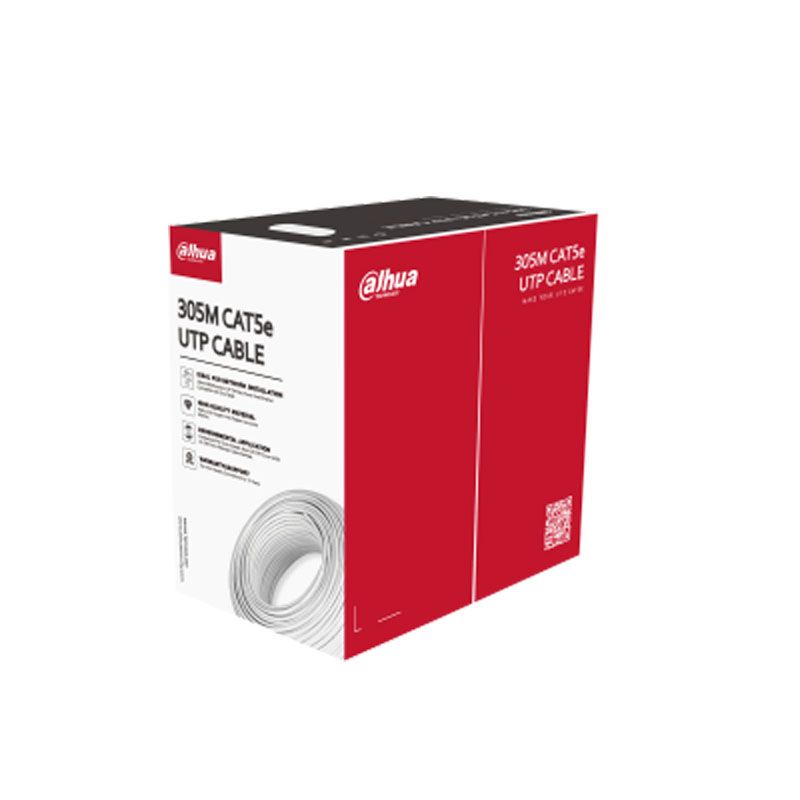

Quick Specs Figure 1 shows the appearance of PFM920I-5EUN-C.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM920I-5EUN-C |
| Category | UTP Cable |
| Cable Type | CAT5e |
| Cable Length | 305 meters (1000 feet) |
| Shielding | Unshielded |
| Conductor Material | 24 AWG solid bare copper |
| Jacket Material | PVC |
| Jacket Color | White |
| Frequency | 100 MHz |
| Maximum Data Rate | 1000 Mbps (1Gbps) |
| Compliance | ANSI/TIA-568-C.2 |
| Temperature Range | -20°C to 75°C |
| Insulation Thickness | 0.20mm |
| Outer Diameter | 5.1mm |
| Impedance | 100 ° 15 ohms |
| Voltage Rating | 300V (Test voltage) |
| Pair Count | 4 pairs |
| Packaging | Pull Box |
| RoHS Compliant | Yes |
| Fire Rating | CMR (Riser) |
