Sold out
PFM940I-59N/2
Model: PFM940I-59N/2 – Dahua Cameras Accessories
Details: Dahua 200m RG59 Coaxial Cable with Power Cable (RG59+2C)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFM940I-59N/2 Overview

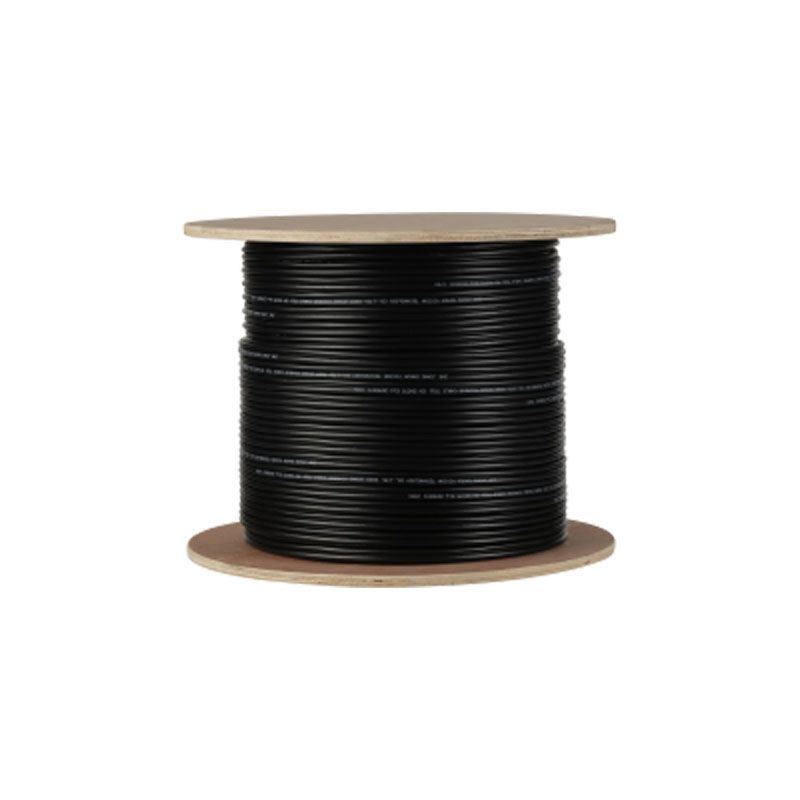

Quick Specs Figure 1 shows the appearance of PFM940I-59N/2.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFM940I-59N/2 |
| Cable Type | Coaxial Cable with Power Cable |
| Coaxial Cable Type | RG59 |
| Power Cables | 2 Conductors |
| Cable Length | 200 meters |
| Material | Copper |
| Jacket Material | PVC |
| Shielding | 95% Braided Shielding |
| Impedance | 75 Ohms |
| Temperature Range | -20°C to 60°C |
| Operating Voltage | 300V |
| DC Resistance | < 40 ohms/km |
| Capacitance | 67 pF/m |
| Attenuation | °10.5 dB/100m |
| Frequency Range | 5-1000 MHz |
| Color | Black |
| Dielectric | Foamed Polyethylene |
| Compliance | RoHS |
| Signal Loss | < 50 dB/1000ft |
