PFS3010-8ET-96
Model: PFS3010-8ET-96 – Dahua PoE Switches
Details: Dahua 8-Port PoE Switch (Unmanaged)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PFS3010-8ET-96 Overview

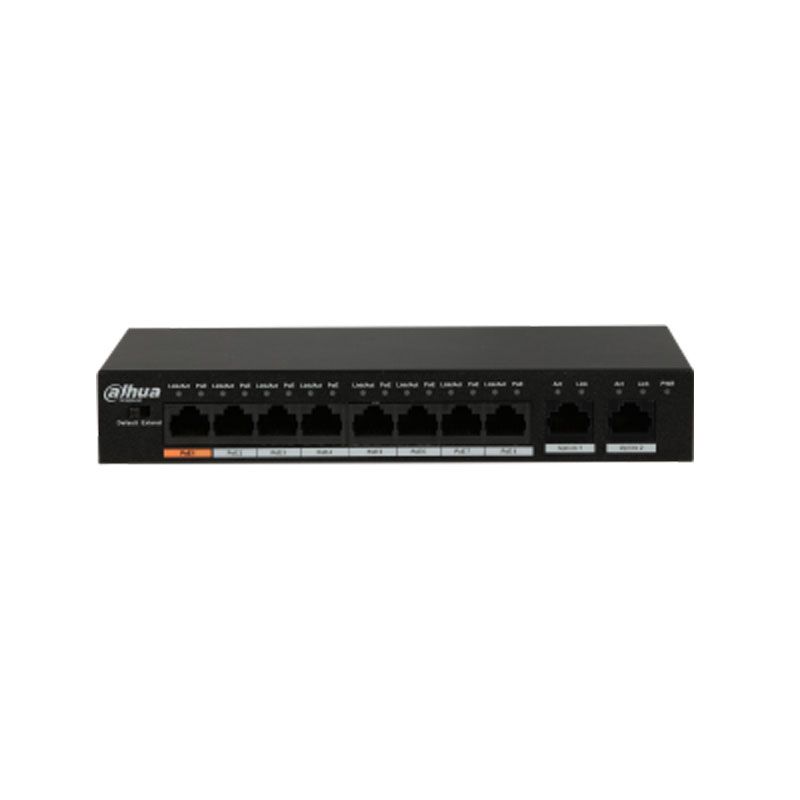

Quick Specs Figure 1 shows the appearance of PFS3010-8ET-96.
Table 1 shows the Quick Specs.
| Model | PFS3010-8ET-96 |
| Ethernet Port | 8*10/100Mbps PoE ports2*10/100/1000Mbps ports |
| PoE Power Consumption | Port1≤60W, Port2-8≤30W, Total≤96W |
| PoE PIN Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE Power Management | Support |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity | 5.6Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 4Mb |
| MAC Table Size | 16K |
| Flow Control | Enable by default |
| Application Humidity | 5%~95% |
| Power | DC 48~57V power adapter |
| Lightning Protection | Common Mode 2KVDifferential Mode 1KV |
| ESD Protection | Air Discharge 8KVContact Discharge 6KV |
| Working Temperature | -10°C~55°C |
| Weight | 490g |
| Dimension(W×D×H) | 190mm×100mm×30mm |
