PFS3117-16ET-135
Model: PFS3117-16ET-135 – Dahua PoE Switches
Details: Dahua 16-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PFS3117-16ET-135 Overview

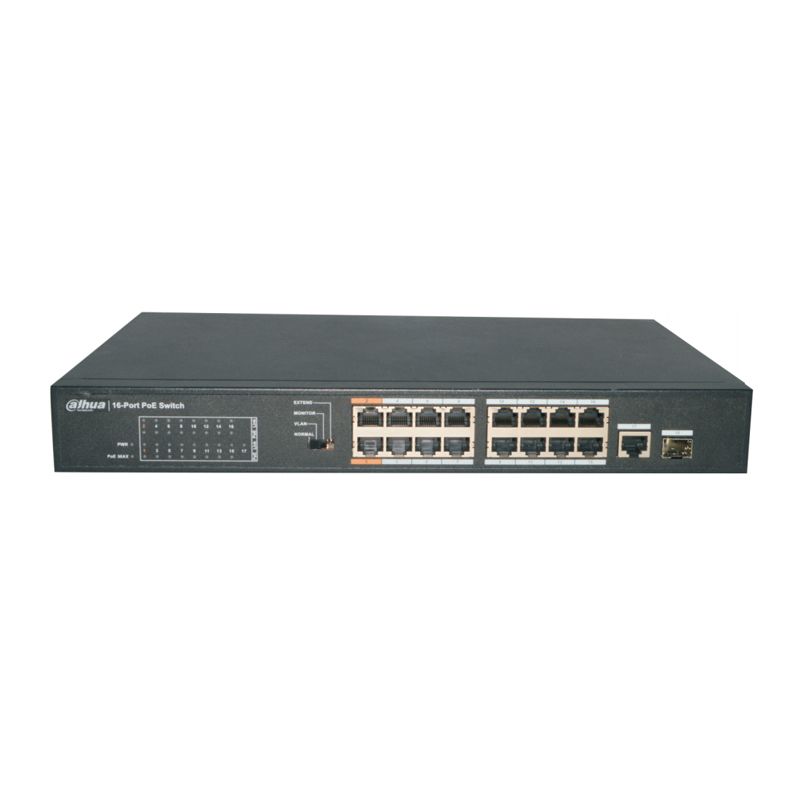

Quick Specs Figure 1 shows the appearance of PFS3117-16ET-135.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PFS3117-16ET-135 |
| Port Type | 16-Port FE PoE+ 1-Port Gigabit Combo |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.35 Mpps |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| PoE Budget | 135W |
| MAC Address Table | 8K |
| Dimensions (WxDxH) | 190 x 294 x 44 mm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 5% to 90% RH (Non-condensing) |
| LED Indicators | Power, Link/Act, PoE, PoE MAX |
| VLAN | Supports VLAN tagging (up to 4096 VLANs) |
| QoS | Supports Quality of Service (QoS) |
| Management | Web-based Management |
| Power Consumption | 150W (Max) |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 Years |
