PFS4218-16ET-190
Model: PFS4218-16ET-190 – Dahua PoE Switches
Details: Dahua 16-Port PoE Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PFS4218-16ET-190 Overview

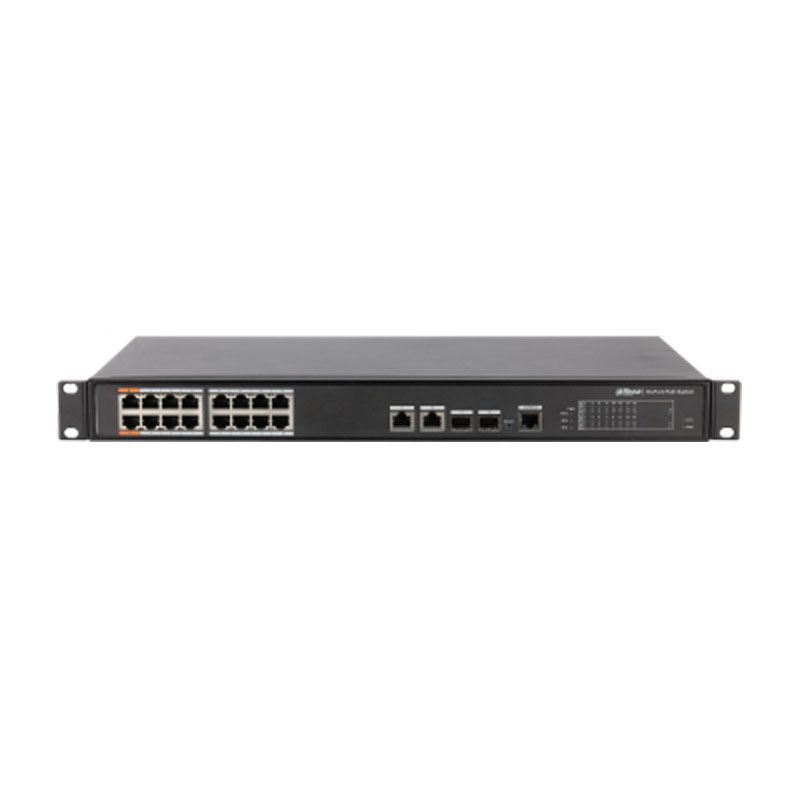

Quick Specs Figure 1 shows the appearance of PFS4218-16ET-190.
Table 1 shows the Quick Specs.
| Model | DH-PFS4218-16ET-190 |
| Ethernet Port | 2*10/100/1000 Base-T (Combo port)2*1000 Base-X (Combo port)16*10/100 Base-T (PoE power supply) |
| PoE Power Consumption | Port1/2 support Hi-PoE (60W), PoE+, PoEEach power ≤30WTotal≤190W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8G |
| Packet Forwarding Rate | 5.36Mpps |
| Humidity | 10%~90% |
| Power | AC 100~240V |
| Lightning Protection | Common Mode 4KVDifferential Mode 2KV |
| Working Temperature | ﹣10℃~55℃ |
| Weight | 3.51kg |
| Dimension(W×D×H) | 440mm x300mm x44mm |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| System | Username / password: admin/admin |
| PoE Budget | 190W |
| MAC Table | 4K |
| VLAN | 802.1Q Standard VLAN |
| Spanning Tree | STPRSTP |
| Port Aggregation | Static link aggregationLACP protocol |
| Mirroring | Many-to-one port mirroring |
| DHCP | Support DHCP-Client |
| Long Distance Mode | “Power & Data” transmission distance up to 250m |
| Flow Control | Half-duplex based on back pressure type control;Full duplex based on PAUSE frame |
| Security Features | IP+MAC binding based on port;IEEE802.1x port authentication |
| System Maintenance | One-key recoverySupport the updated packet uploadSystem log |
| QoS | High and low priority, WRR802.1P, DSCPSupport priority according to protocol |
| Network Management | WEB(http and https protocol)Support SNMP V1/V2C/V3 |
| PoE Management | PoE setting (real-time port comsumption) |
