PHSA0.9-EH
Model: PHSA0.9-EH – Dahua Project Exclusive Display
Details: Dahua Indoor Small Pixel Pitch LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA0.9-EH Overview

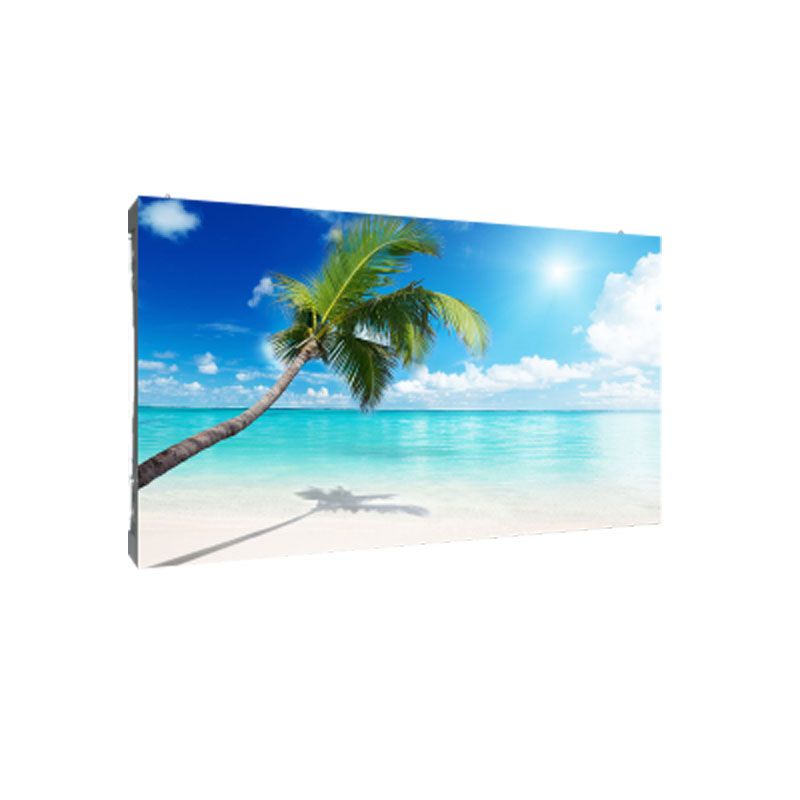

Quick Specs Figure 1 shows the appearance of PHSA0.9-EH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PHSA0.9-EH |
| Type | Indoor Small Pixel Pitch LED |
| Pixel Pitch | 0.9 mm |
| Brightness | 600 nits |
| Contrast Ratio | 5000:1 |
| Refresh Rate | 3840 Hz |
| Viewing Angle (Horizontal/Vertical) | 160° / 140° |
| Resolution | Full HD |
| Power Consumption (Max) | 240 W/m2 |
| Power Consumption (Avg) | 80 W/m2 |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 10% to 85% RH |
| Input Voltage | 100-240V AC |
| Signal Input | DVI, HDMI |
| Signal Output | Loop Through |
| Protections | IP30 |
| Aspect Ratio | 16:9 |
| Dimensions | 500 x 500 mm per panel |
| Lifespan | 100,000 hours |
