Sold out
PHSA1.2-SH
Model: PHSA1.2-SH – Dahua Display & Control LED Displays
Details: Dahua Indoor Fine Pixel LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA1.2-SH Overview

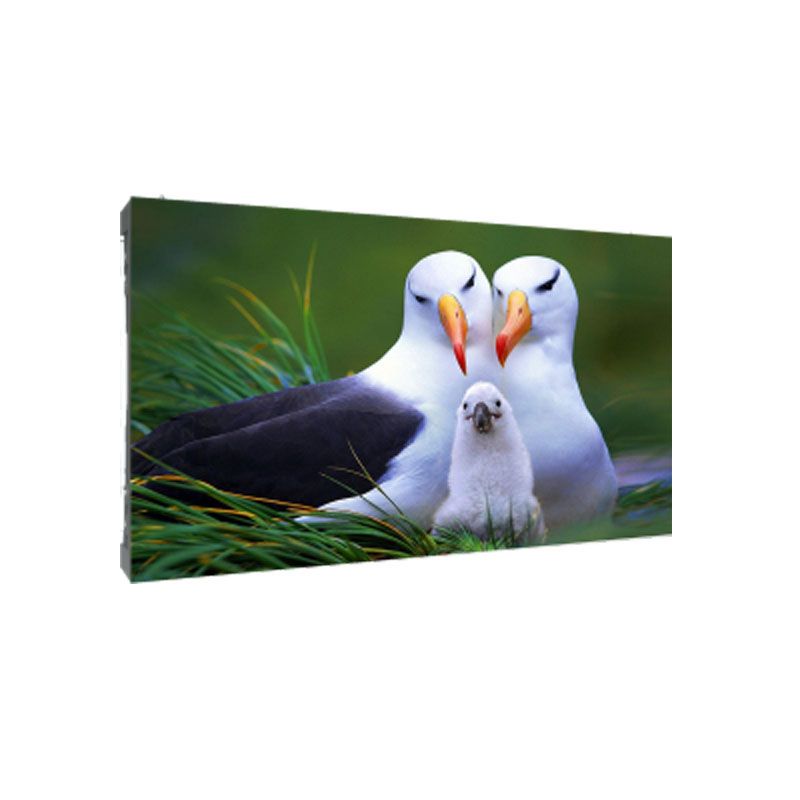

Quick Specs Figure 1 shows the appearance of PHSA1.2-SH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | PHSA1.2-SH |
| Product Type | Indoor Fine Pixel LED |
| Pixel Pitch | 1.27mm |
| Brightness | 600 nits |
| Resolution | 1920 x 1080 |
| Refresh Rate | 3840 Hz |
| Contrast Ratio | 5000:1 |
| Viewing Angle (H/V) | 160?? / 140?? |
| Power Consumption | Max 800W/m2 |
| Operating Temperature | -20??C to 50??C |
| Pixel Configuration | 3-in-1 SMD |
| Maintenance Access | Front Access |
| Lifespan | 100,000 hours |
| Pixel Density | 614,400 pixels/m2 |
| Module Size | 400mm x 300mm |
| Cabinet Material | Die-casting Aluminum |
| Signal Input | DVI, HDMI |
| Certification | CE, FCC, RoHS |
| Ingress Protection | IP30 |
| Signal Transmission | CAT6 Cable |
| Control System | NovaStar |
Get more information
Do you have any question about the PHSA1.2-SH?
Contact us now via Live Chat or sales@metafinitivetech.com
