PHSA1.6-MH
Model: PHSA1.6-MH – Dahua Display & Control LED Displays
Details: Dahua Indoor Fine Pixel LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA1.6-MH Overview

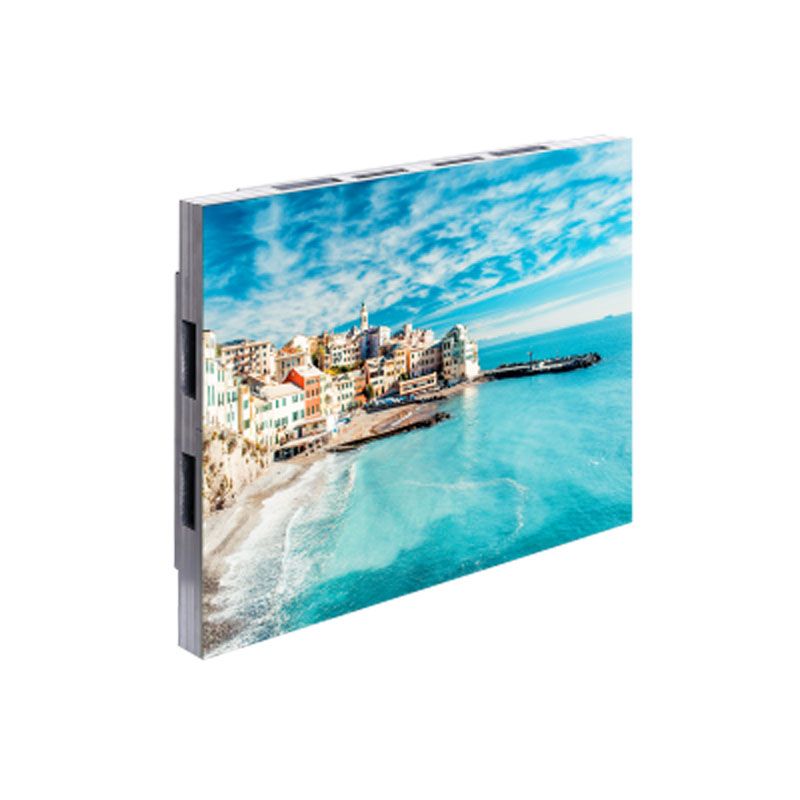

Quick Specs Figure 1 shows the appearance of PHSA1.6-MH.
Table 1 shows the Quick Specs.
| Model | PHSA1.6-MH |
| Pixel Pitch | 1.60mm |
| Pixel Type | 1R1G1B |
| LED Type | SMD0909 |
| Brightness | 50~800 cd/m? (adjustable) |
| Brightness Control | Automatic/Manual |
| Color Temperature | 1500K~12000K (adjustable) |
| Viewing Angle | 170??/160?? |
| Pixel Density | 390,625 dots/m? |
| Module Resolution (W??H) | 144??108 dots |
| Module Size (W??H) | 230.4??172.8 mm |
| Cabinet Resolution (W??H) | 288??216 dots |
| Cabinet Size (W??H??D) | 460.8??345.6??39.5 mm |
| Cabinet Weight | 7.7 kg/cabinet |
| Cabinet Area | 0.1593 m? |
| Cabinet Material | Die-cast aluminum |
| Cabinet Aspect Ratio | 4:3 |
| Ingress Protection | Front/Rear: IP40/IP42 |
| Operating Temperature | -20??~+50??/10%~90%RH |
| Storage Temperature | -40??~+60??/10%~90%RH |
| Cabinet Flatness | 0.05 mm |
| Color Processing Depth | ??16 bits |
| Grey Level | 16,384 levels per color |
| Color | 281.4 trillion |
| Single Pixel Brightness Correction | Support |
| Single Pixel Color Correction | Support |
| Brightness Uniformity | 97%/??0.003 |
| Color Uniformity | (x,y)??0.003 |
| Contrast | 8000:1 |
| Frame Rate | 50/60 Hz |
| Refresh Rate | 3000~7200 Hz(adjustable) |
| Input Voltage | AC90~264V,47~63Hz |
| Input Power (max) | 937 W/m? |
| Input Power (avg) | 310 W/m? |
| Lifespan | 80,000 Hours |
| LED Wavelength | R:620~630nm, G:520~530nm, B:465~475nm |
| Driving Mode | Constant Current Driving, 1/27 scan |
| Installation | Fixed |
| Maintenance Mode | Front Maintenance |
| Communication Connection | CAT5 Cable ( L??100m ); multi-mode fiber ( L??500m ); single mode fiber (L??20km) |
