Sold out
PHSA1.6-SH
Model: PHSA1.6-SH – Dahua Display & Control LED Displays
Details: Dahua Indoor Fine Pixel LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA1.6-SH Overview

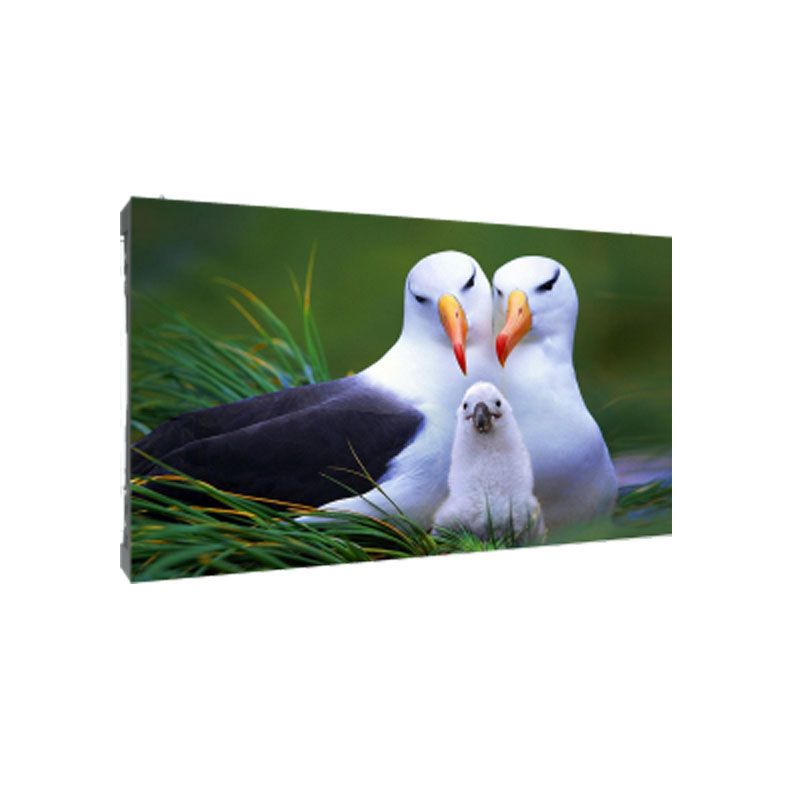

Quick Specs Figure 1 shows the appearance of PHSA1.6-SH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | Indoor Fine Pixel LED |
| Model | PHSA1.6-SH |
| Pixel Pitch | 1.6mm |
| LED Type | SMD (Surface Mounted Diode) |
| Brightness | 600 nits |
| Contrast Ratio | 5000:1 |
| Refresh Rate | 3840Hz |
| Viewing Angle (H/V) | 160?? / 140?? |
| Service Access | Front |
| Power Consumption (Max/Avg) | 800W/m2 / 260W/m2 |
| Input Voltage | 100-240V AC |
| Operating Temperature | -20??C to 40??C |
| Lifetime | 100,000 hours |
| Ingress Protection | IP30 |
| Color Temperature | 3200K-9300K adjustable |
| Gray Scale | 16 bit |
| Certification | CE, FCC, RoHS |
| Modules Resolution | 192×192 pixels |
| Cabinet Resolution | 384×384 pixels |
| Control System | NovaStar |
