PHSA1.9-SH
Model: PHSA1.9-SH – Dahua Display & Control LED Displays
Details: Dahua Indoor Fine Pixel LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA1.9-SH Overview

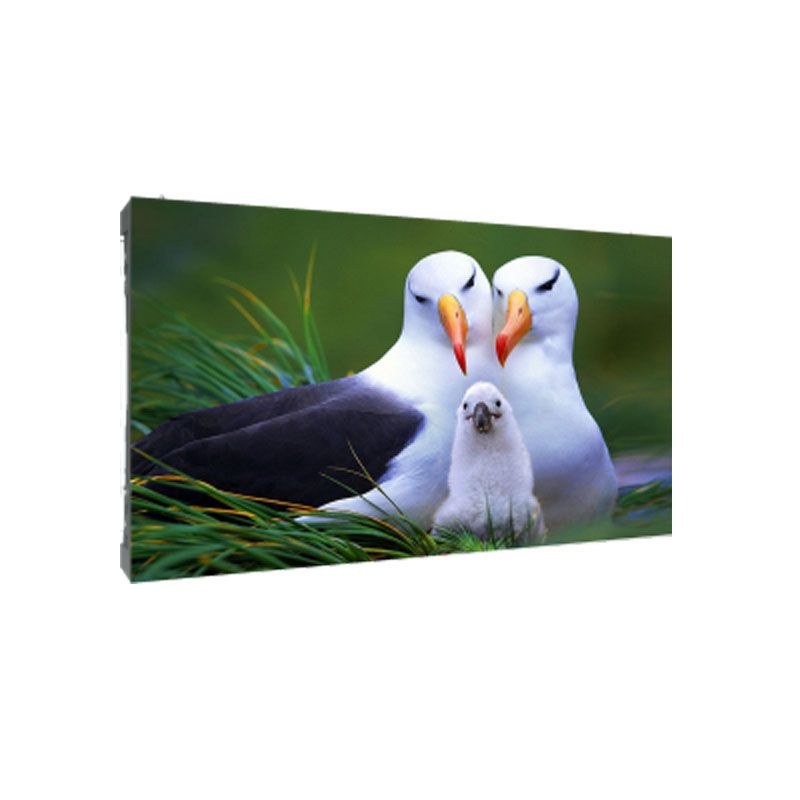

Quick Specs Figure 1 shows the appearance of PHSA1.9-SH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model Name | PHSA1.9-SH |
| Type | Indoor Fine Pixel LED |
| Pixel Pitch | 1.9 mm |
| Resolution | Full HD |
| Brightness | ?? 600 cd/m2 |
| Refresh Rate | ?? 3840 Hz |
| Viewing Angle | 160?? horizontal, 140?? vertical |
| Contrast Ratio | ?? 5000:1 |
| Power Consumption (Max) | ?? 480 W/m2 |
| Power Consumption (Avg) | ?? 160 W/m2 |
| Input Voltage | AC 100V?C240V 50/60 Hz |
| Frame Rate | 60 Hz |
| Life Span | ?? 100,000 hours |
| Operating Temperature | -10??C to +45??C |
| Operating Humidity | 10% to 90% RH |
| Cabinet Dimension | 480 (W) x 480 (H) x 65 (D) mm |
| Cabinet Material | Die-casting aluminum |
| Signal Input | DVI, HDMI, SDI |
| Control Distance | Ethernet cable: 100m, fiber cable: 5km |
| Ingress Protection | IP30 (front and rear) |
