PHSA2.5-EH
Model: PHSA2.5-EH – Dahua Display & Control LED Displays
Details: Dahua Indoor Fine Pixel LED
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PHSA2.5-EH Overview

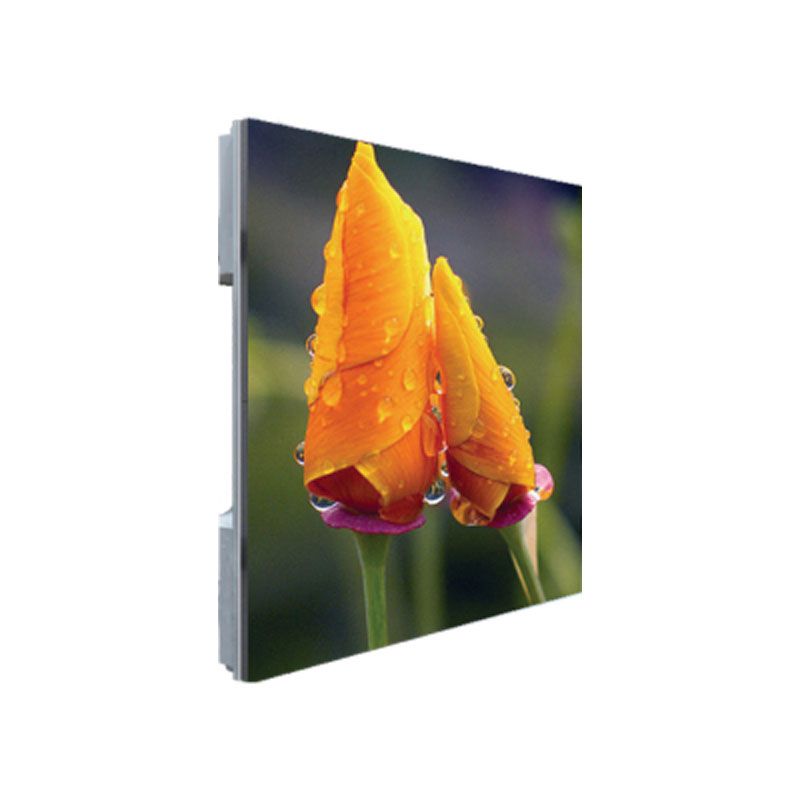

Quick Specs Figure 1 shows the appearance of PHSA2.5-EH.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | PHSA2.5-EH |
| Screen Type | LED |
| Application | Indoor |
| Pixel Pitch | 2.5mm |
| Brightness | 800 cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160?? (Horizontal), 140?? (Vertical) |
| Refresh Rate | 3840Hz |
| Module Resolution | 128 (W) ?? 64 (H) |
| Module Size | 320mm ?? 160mm |
| Number of Modules | 8×4 |
| Cabinet Resolution | 256 (W) ?? 256 (H) |
| Cabinet Size | 640mm ?? 640mm |
| Cabinet Material | Aluminum |
| Power Supply | AC 110V/240V, 50-60Hz |
| Max Power Consumption | 500W/m2 |
| Average Power Consumption | 170W/m2 |
| Ingress Protection | IP30 |
| Working Temperature | -20??C to +50??C |
| Operating Humidity | 10% to 90% RH |
