Pinsu 5G Mobile WiFi R100
Model: Pinsu 5G Mobile WiFi R100 – Pinsu 5G Routers
Details: Pinsu R100, Qualcomm X55, support NA &SNA, WiFi 6 Dual-band, 3600mAh battery.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Pinsu 5G Mobile WiFi R100 Overview

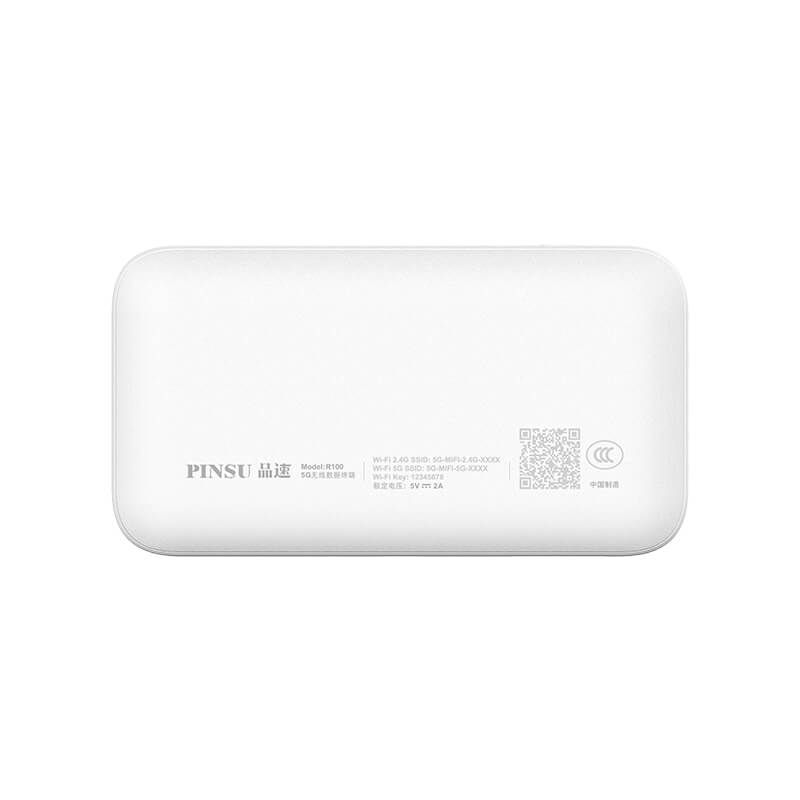

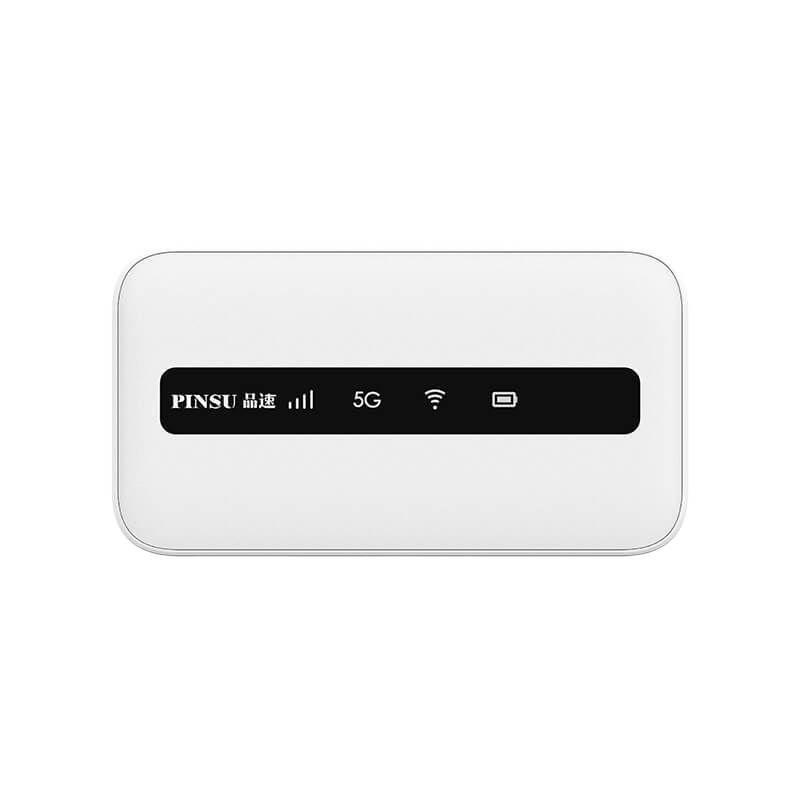

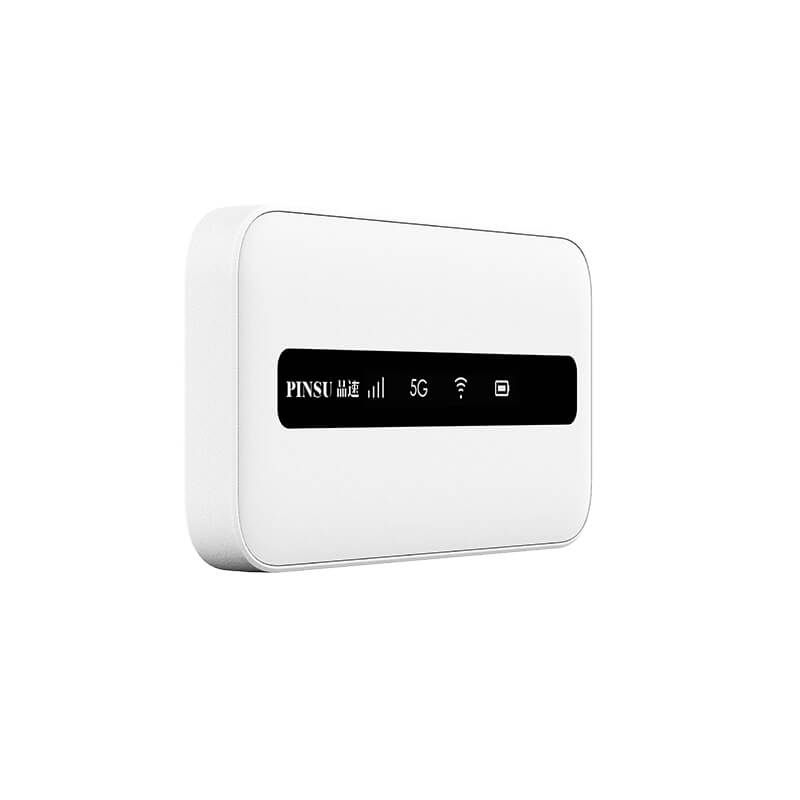

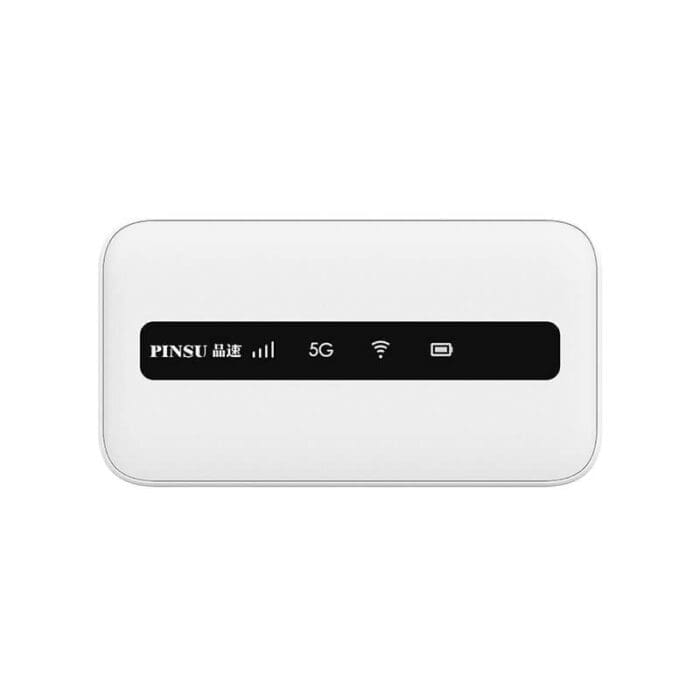

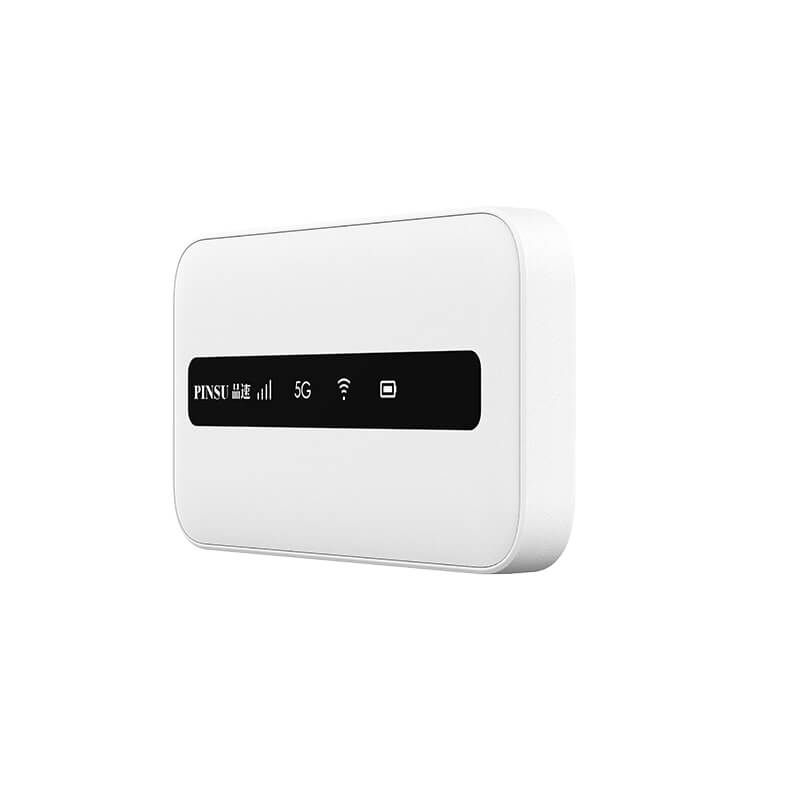

Quick Specs Figure 1 shows the appearance of Pinsu 5G Mobile WiFi R100.
Table 1 shows the Quick Specs.
| Form Factor | Mobile Wi-Fi |
| Dimension | About 130*70*19.5mm |
| Weight | About 160g |
| Color | Black& White |
| Technical Standard | 5G/4G/3G802.11 a/b/g/n/ac/ax |
| Frequency | EA:5G NR Sub-6G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32LTE-TDD: B38/39/B40/B41WCDMA: B1/B3/B5/B8SA:5G NR Sub-6G:N2/N5/N12/N25 /N4 1/N48/N66/N71/N77/N78LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71LTE-TDD: B41/B42/B43/B46/B48WCDMA: B2/B4/B5 |
| Wi-Fi | 2. 4G&5G: WIFI 2*2 MIMO 802.11 a/b/g/n/ac/ax |
| Maximum Data Throughput | 5G NSA: 3Gbps/300MbpsFDD-LTE 1.2Gbps/150Mbps |
| Receive Diversity | Support |
| MIMO | Support DL 4×4 MIMO |
| BB Chipset | Qualcomm SDx55 |
| Wi-Fi Chipset | QCA6391 |
| Memory | 4GB+4GB |
| USB Charging | Type-C |
| USIM/SIM | 4FF SIM cardSupport SIM/USIMUIM, standard 6 PIN SIM card interface, support 3V SIMÂ card and 1.8V SIM card: internal |
| Battery | Li-ion Battery 3600mAh |
| Charging time | About 3H |
| Working time | About 6H |
| LED | Signal Strength, 5G Indication, WIFI Indication, Power indication |
| USB | Type-C, Charge & internet |
| Antenna | 5G+4G: 6 antennasWi-Fi: 2 antennas |
| Buttons | POWER, Reset |
| ESD | ESD Protection circuit, Contact士8KV, Air士10KV |
| Operating Temperature | Normal: -10°C ~ +45*C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity | 5% ~ 95% |
