PSDW81642M-A360 (only for project)
Model: PSDW81642M-A360 (only for project) – Dahua Project Exclusive Network Cameras
Details: Dahua 8x2MP Multi-Sensor Panoramic Network Camera+PTZ Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
PSDW81642M-A360 (only for project) Overview

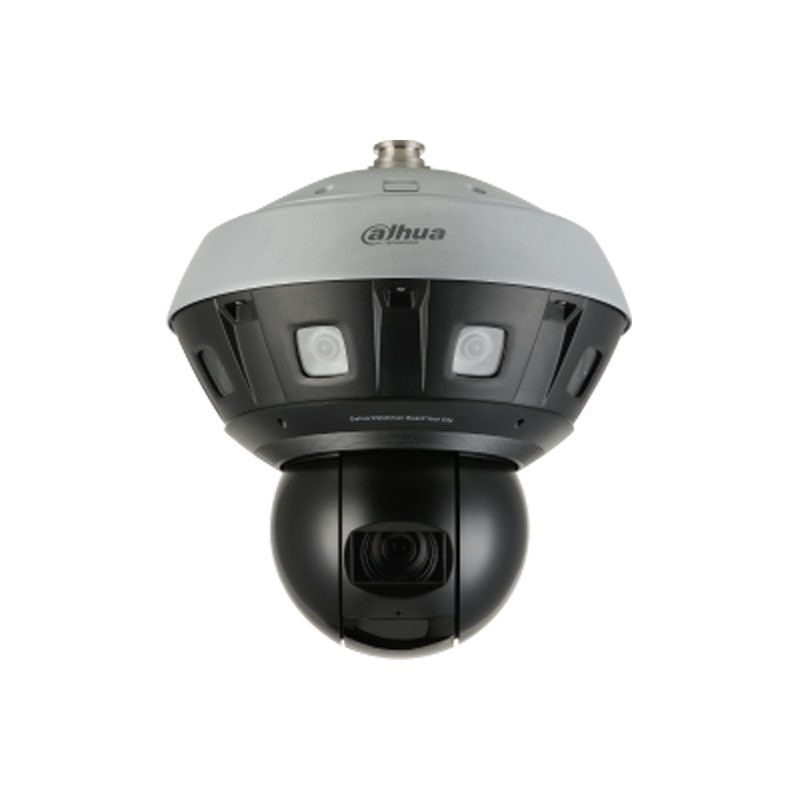

Quick Specs Figure 1 shows the appearance of PSDW81642M-A360 (only for project).
_1.png)
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | PSDW81642M-A360 (only for project) |
| Camera Type | Multi-Sensor Panoramic Network Camera+PTZ Camera |
| Image Sensor | 1/2.8″ 2 Megapixel progressive scan CMOS |
| Effective Pixels | 8x2MP Panoramic + 2MP PTZ |
| Field of View (FOV) | 360?? Panoramic, PTZ: Horizontal 360?? continuous, Vertical -20?? to 90?? |
| Max Resolution | 8 x 1920 x 1080 (Panoramic), 1920 x 1080 (PTZ) |
| Frame Rate | 25/30 fps @ 8 x 1080P (Panoramic), 25/30 fps @ 1080P (PTZ) |
| Compression | H.265, H.264, MJPEG |
| Lens Type | Fixed (Panoramic), Motorized (PTZ) |
| Internal Storage | Micro SD, up to 256GB |
| Audio Interface | 1/1 channel In/Out |
| Network Interface | 1 x RJ-45 (10/100/1000 Base-T) |
| Power Supply | AC 24V/3A??10%, DC 12V/6A??10%, PoE+ (802.3at) |
| Power Consumption | Max 52W |
| Operating Temperature | -40??C to +60??C (-40??F to 140??F) |
| Ingress Protection | IP67, IK10 |
| Dimensions | ??295 mm ?? 214 mm (??11.61 in. ?? 8.43 in.) |
| Video Bit Rate | H.264: 32 Kbps-8192 Kbps, H.265: 12 Kbps-8192 Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| Smart Features | Face Detection, IVS (Tripwire,Intrusion), People Counting |
| Remote Access | Web viewer, CMS(DSS/PSS) & DMSS |
