PVDM2-64 Original price was: $1,453.00.Current price is: $1,380.35.
Back to products
EHWIC-3G-EVDO-S Original price was: $436.00.Current price is: $414.20.

PVDM3-16

Original price was: $328.00.Current price is: $311.60.

Model: PVDM3-16 Router Voice DSP Module
Details: 16-channel high-density voice and video DSP module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: PVDM3-16 Categories: , , ,
Description

PVDM3-16 Overview

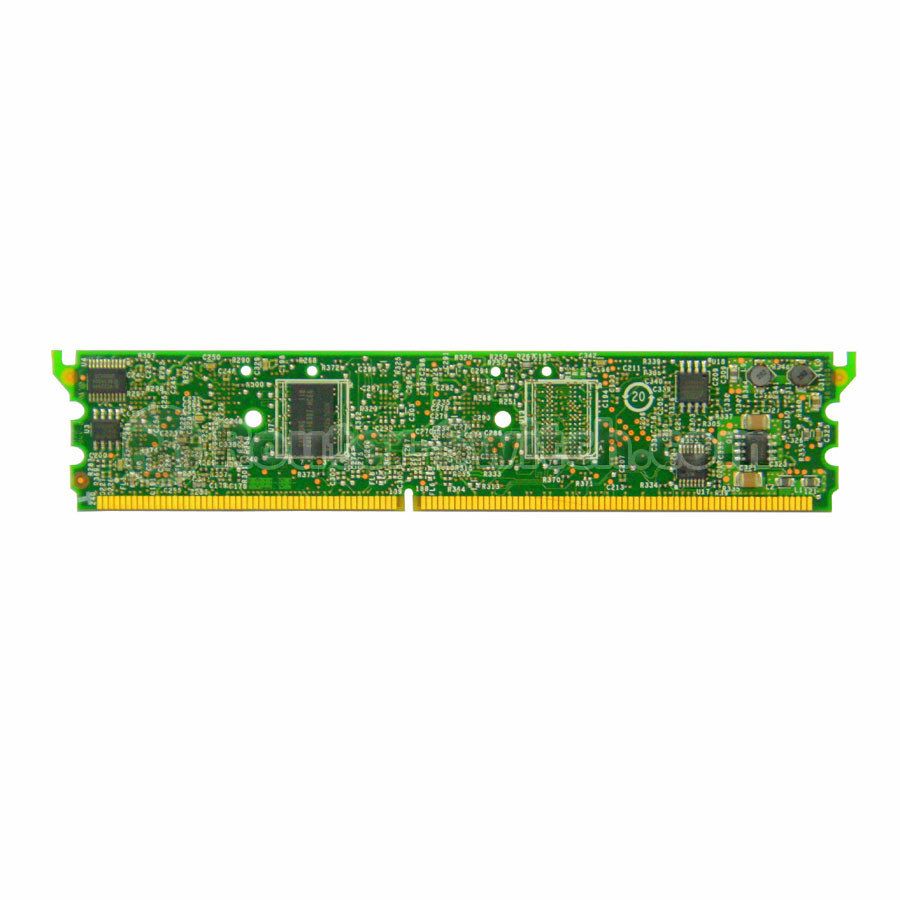

Quick Specs Figure 1 shows the appearance of PVDM3-16.

Table 1 shows the Quick Specs.

DSP Multicore DSP technology
DSP external memory 512-megabit double-data-rate (DDR) synchronous dynamic random access memory (SDRAM) for each DSP
Interface 240-pin dual-inline-memory-module (DIMM) interface
Echo cancellation Software echo cancellation compliant with ITU-T G.168, with 128-ms tail coverage
Operating temperature -41 to 131°F (-5 to 55°C)
Voltage 3.3V
Current 1.47A
Power 4.85W
Safety ●  Complies with IEC 60950 (worldwide) and AS/NZS 60950-1 (Australia and New Zealand), CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada), and GB4943-95 (People’s Republic of China)●  EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA)●  NOM-019-SCFI-1998 (Mexico), and UL 60950-1, 1st and 2nd Ed. (United States)
Homologation Platform dependent
Mean time between failure (MTBF) System dependent
Emissions ●  CISPR22, Class B●  EN55022, Class B, CFR47, Part 15, Subpart B, Class B
Harmonics EN61000-3-2
Flicker EN61000-3-3
Immunity ●  CISPR24●  EN 55024●  EN50082-1
Electrostatic discharge (ESD) EN 61000-4-2
RF fields EN 61000-4-3
EFT EN 61000-4-4
Surge EN 61000-4-5
Conducted RF EN 61000-4-6
Power-frequency magnetic fields EN 6100-4-8
Voltage dips, sags, and interruptions EN 61000-4-11
