-5%
PWR-C3-750WDC-R/2
Model: Cisco Switch Power Supply 750W DC
Details: 750W DC Config 3 Redundant Power Supply front to back cool
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PWR-C3-750WDC-R/2 Overview

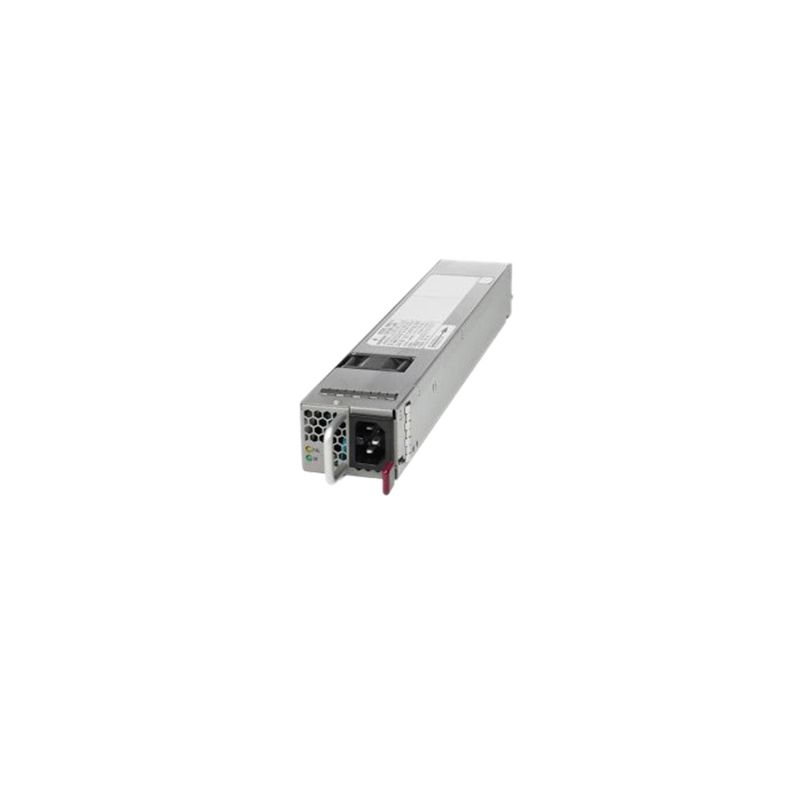

Quick Specs Figure 1 shows the appearance of PWR-C3-750WDC-R/2.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | PWR-C3-750WDC-R/2 |
| Power Capacity | 750 Watts |
| Power Supply Type | DC Config 3 Redundant |
| Cooling Method | Front to back cooling |
| Input Voltage Range | 40.5 to 72 VDC |
| Form Factor | Internal |
| Redundancy | 1+1 or 2+0 redundancy |
| Efficiency | 92% typical |
| Dimensions (HxWxD) | 1.58 x 3.25 x 12.2 inches (4 x 8.26 x 31 cm) |
| Connector Type | DC Connector |
| Heat Dissipation | 290 BTU/hr |
| Regulatory Compliance | Compliance with the RoHS directive |
| Operating Temperature | 0 to 45��C (32 to 113��F) |
| Storage Temperature | -40 to 70��C (-40 to 158��F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Altitude | Up to 9843 ft (3000 m) |
| Acoustic Noise | 70 dB at maximum load |
| Warranty | 1 Year |
