PWR-C45-1400AC

Name: PWR-C45-1400AC
SKU: PWR-C45-1400AC
Availability: InStock

Original price was: $658.00.Current price is: $625.10.

Model: PWR-C45-1400AC Cisco Catalyst 4500 Non-PoE Power Supply
Details: Cisco Catalyst 4500 Power Supply PWR-C45-1400AC Catalyst 4500 1400W AC Power Supply (Data Only)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to compare

Add to wishlist

SKU: PWR-C45-1400AC Categories: Catalyst 4500 Switch Power Supply, Cisco Power Supply, Networking Accessories, Power Supplies, Cables and Other

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

Description

PWR-C45-1400AC Overview

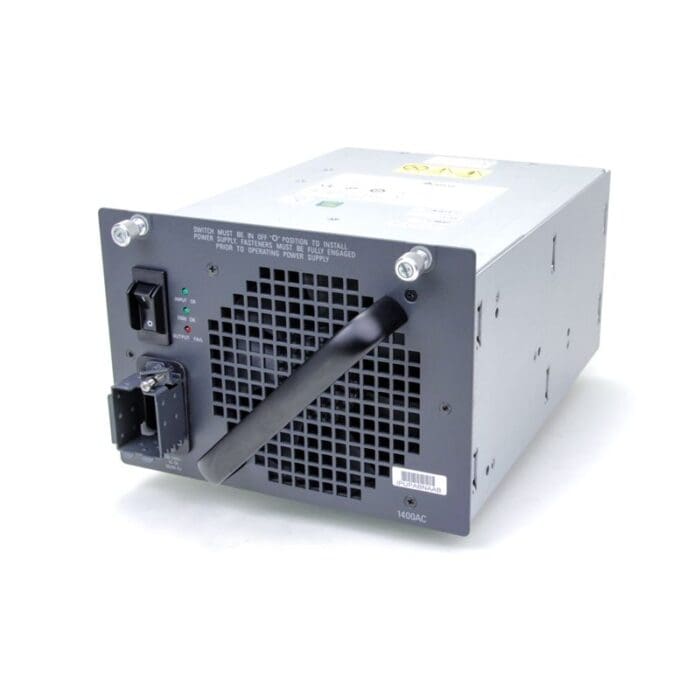

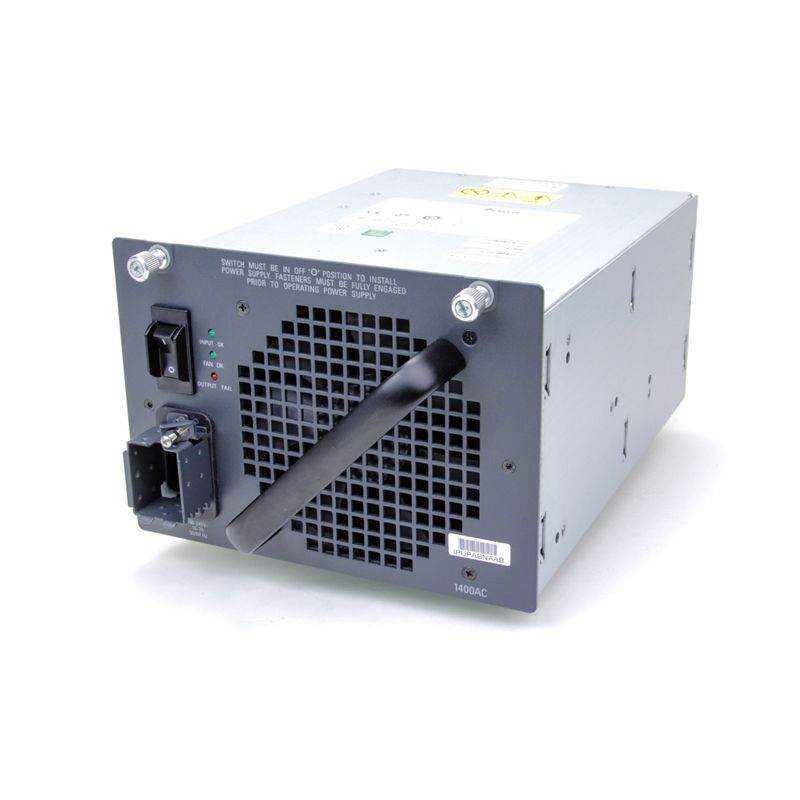

Quick Specs Figure 1 shows the appearance of PWR-C45-1400AC.

Table 1 shows the Quick Specs.

AC-input type	Autoranging input with power factor correctorNote Power factor correction is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current allowing higher power factors (typically 99 percent or better) and lower harmonic current components.
AC-input voltage	Low-line (120 VAC nominal)—85 VAC (min) to 132 VAC (max)High-line (230 VAC nominal)—170 VAC (min) to 264 VAC (max)
AC-input current	16 A @ 120 VAC7 A @ 240 VAC
AC-input frequency	50/60 Hz (nominal) (±3 Hz for full range)
Branch circuit requirement	Each chassis power supply should have its own dedicated, fused-branch circuit:For North America—15 A or 20 AFor International—Circuits sized to local and national codesAll Catalyst 4500 E-series AC-input power supplies require single-phase source AC.All AC power supply inputs are fully isolated.– Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.– For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is in the range of 170 to 264 VAC.– Source AC can be out of phase between AC inputs on power supplies that are equipped with multiple AC inputs, which means that power cord 1 can be plugged into phase A and power cord 2 can be plugged into phase B.
Power supply output	2473 W maximum1360 W + 40 W redundant mode (data)
Power supply output (AC supply)	113.4 A @ +12 V12.2 A @ +3.3 V (data)
Output holdup time	20 ms minimum
Max heat dissipation	1048 BTUs/hr
Maximum kVA rating	1.76 kVA
Minimum software requirement	Cisco IOS Release 12.2(18)EW
Power over Ethernet	Not supported
INPUT OK	Green—Source AC voltage is OK. (Input voltage is 85 VAC or greater.)Off—Source AC voltage falls below 70 VAC, is not present, or the power supply is turned off.
FAN OK	Green—Power supply fan is operating properly.Off—Power supply fan failure is detected.
OUTPUT FAIL	Red—Problem with one or more of the DC-output voltages of the power supply is detected.Off—DC-output voltage with acceptable margins.Note For proper operation of the OUTPUT FAIL LED, systems with single power supplies must be configured with a minimum of one fan tray assembly and one supervisor engine. Systems with dual power supplies must have a minimum configuration of one fan tray assembly, one supervisor engine, and one additional module. Failure to meet these minimum configuration requirements can cause a false power supply output fail signal.
