Sold out
Q0F06A
Model: Q0F06A – HPE MSA Storage Controllers
Details: Q0F06A – HPE MSA 2042 SAN DC SFF Storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
Q0F06A Overview

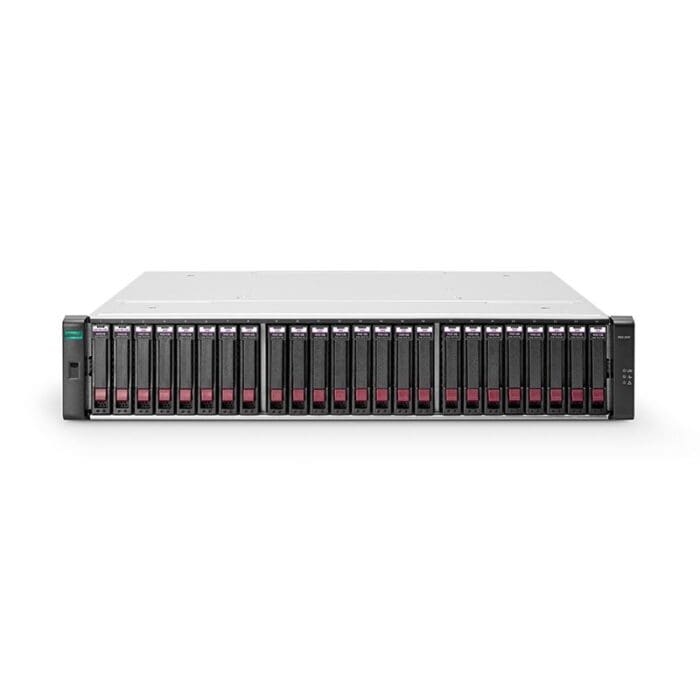

Quick Specs Figure 1 shows the appearance of Q0F06A.
Table 1 shows the Quick Specs.
| Installed Devices Modules Qty | 2 |
| Supported Devices Modules Qty | 24 |
| Supported Interface | Serial Attached SCSI 3 |
| Width | 17.6 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 38.58 lbs |
| Form Factor (metric) | 6.4 cm SFF |
| Installed Qty | 2 |
| Type | RAID |
| Form Factor | 2.5 SFF |
| Total Qty | 24 |
| Free Qty | 22 |
| Sound Emission | 55 dBA |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Compatibility | Mac, PC, Unix |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE Modular Smart Array |
| Model | 2042 SAN Dual Controller SFF Storage |
| Brand | HPE |
| Qty | 8 |
| Connector Type | RJ-45 |
| Interface (Storage) | Management |
| Compliant Standards | AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1-03, CCC, China RoHS, CNS 13438, EN 60950-1, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15, GS, ICES-003, IEC 60950-1, KN22 Class A, KN24, RoHS 6/6, UL 60950-1, VCCI, WEEE |
| Height (Rack Units) | 2 |
| Color Category | Black |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Hot-Plug | Hot-plug |
| Max Supported Capacity | 76.8 TB |
| Total Array Capacity | 800 GB |
| Rack-mountable | Rack-mountable |
| HDD Array External Interface | 16Gb Fibre Channel, 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE) |
| Maximum LUNs | 512 |
| HDD Array External Interface Class | Fibre Channel, iSCSI |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 3, RAID 5, RAID 50, RAID 6 |
| Data Transfer Rate | 1.2 GBps |
| Interface Type | Serial Attached SCSI 3 |
| Capacity | 400 GB |
| Features | Mixed-Use |
| Min Operating System | Apple MacOS X, HP-UX, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Red Hat Linux, SUSE Linux Enterprise Server |
