-5%
Q1J03A
Model: Q1J03A – HPE MSA Storage Controllers
Details: HPE MSA 2052 SAN Dual Controller SFF Storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Q1J03A Overview

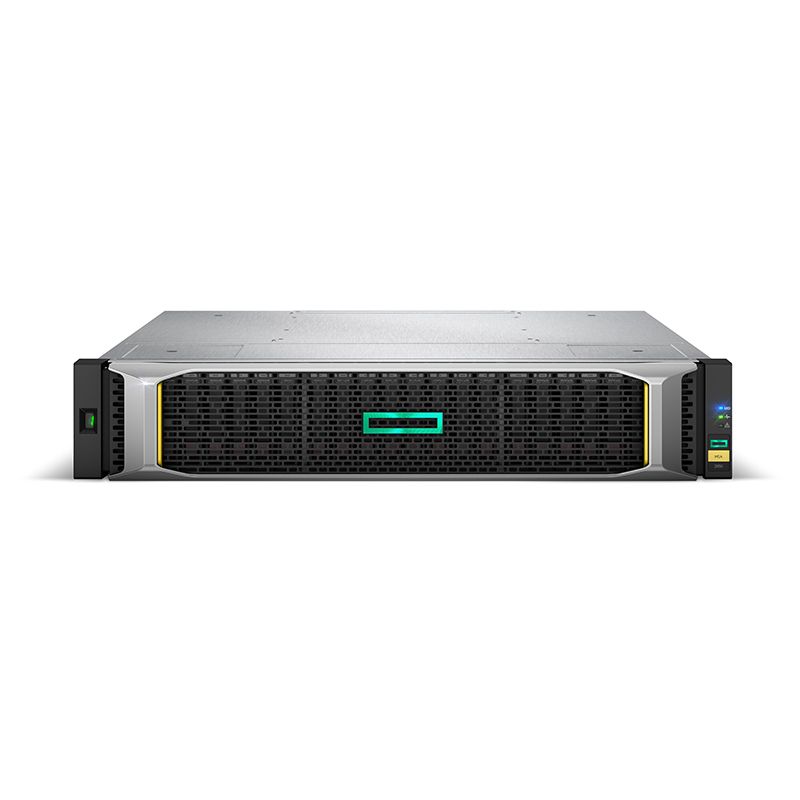

Quick Specs Figure 1 shows the appearance of Q1J03A.
Table 1 shows the Quick Specs.
| Form Factor | 2.5 SFF |
| Total Qty | 24 |
| Free Qty | 22 |
| Installed Devices Modules Qty | 2 |
| Supported Devices Modules Qty | 24 |
| Supported Interface | Serial Attached SCSI 2 |
| Width | 29 in |
| Depth | 26 in |
| Height | 11 in |
| Weight | 57.89 lbs |
| Sound Emission | 55 dBA |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| ENERGY STAR Certified | Yes |
| Form Factor (metric) | 6.4 cm SFF |
| Installed Qty | 2 |
| Type | None |
| Compatibility | PC, Unix |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE Modular Smart Array |
| Model | 2052 SAN Dual Controller SFF Storage |
| Brand | HPE |
| Qty | 4 |
| Interface (Storage) | SAS |
| Purpose Location | Management |
| Connector Type | RJ-45 |
| Compliant Standards | CAN/CSA C22.2 No. 60950-1-03, CCC, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 60950-1, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15, GS, ICES-003:2004 Class A, IEC 60950-1, KN22 Class A, KN24, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE |
| Features | Mixed-Use |
| Height (Rack Units) | 2 |
| Color Category | Black, Gray |
| Max Supported Qty | 2 |
| Power Consumption Operational | 432 Watt |
| Nominal Voltage | DC -40 -75 V |
| Power Redundancy | Yes |
| Hot-Plug | Hot-plug |
| Support Details Type | Limited warranty |
| Support Details Full Contract Period | 3 years |
| Max Supported Capacity | 960 TB |
| Total Array Capacity | 1.6 TB |
| Rack-mountable | Rack-mountable |
| Maximum LUNs | 512 |
| Bus Type | iSCSI |
| RAID Level | RAID 1, RAID 10, RAID 5, RAID 6 |
| Data Transfer Rate | 600 MBps |
| Interface Type | Serial Attached SCSI 2 |
| Buffer Size | 8 GB |
| Capacity | 800 GB |
| Min Operating System | Apple MacOS X, HP OpenVMS, HP-UX, Microsoft Windows, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, Red Hat Enterprise Linux, SuSe Linux, VMware ESXi 5.x, VMware ESXi 6.x |
Get more information
Do you have any question about the Q1J03A?
Contact us now via Live Chat or sales@metafinitivetech.com
