-5%
Q2P73A
Model: Q2P73A – HPE NAS StoreEasy Storages
Details: HPE StoreEasy 1660 16TB SAS Storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Q2P73A Overview

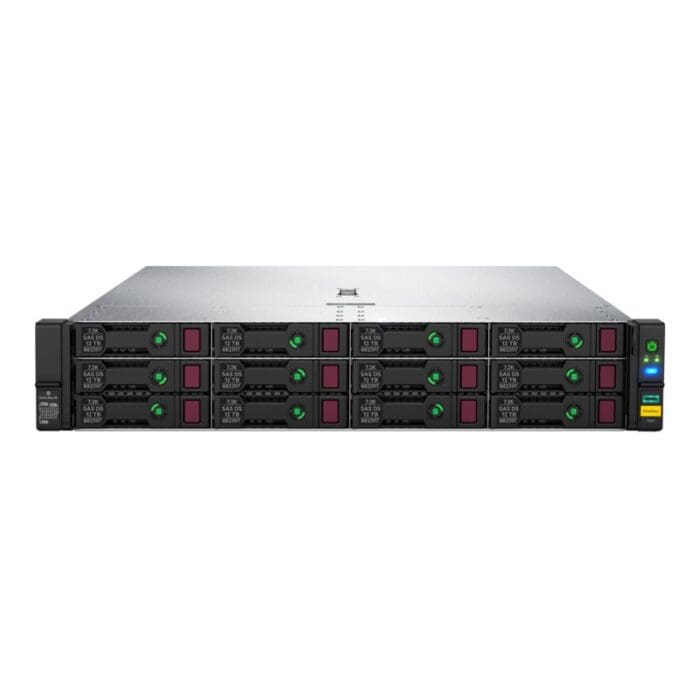

Quick Specs Figure 1 shows the appearance of Q2P73A.
Table 1 shows the Quick Specs.
| Processor | 1 x Intel® Xeon-Silver 4112 (2.6GHz/4-core/85W) or Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W); 2ndprocessor optionalNOTE: The Xeon-Silver 4112 processor is only available on the HPE StoreEasy 1660 Performance Storage model (SKU# Q2P71A). |
| Memory | 16GB (1 x HPE 16GB Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory) |
| Storage Controller | HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller for data drivesHPE Smart Array S100i SR Gen10 SW RAID for OS drives only |
| Internal Drive Support | 12 LFF (3.5″) hot-plug drive bays in front, optional 4LFF hot-plug mid-chassis drive cage |
| Network Port(s) | 4 x 1GbE; optional FlexLOM adapter or PCIe NICs |
| Expansion Slots | 3x PCIe; optional 3 slot secondary riserNOTE:Â One PCIe slot occupied by M.2 SSD card. |
| Security | Trusted Platform Module 2.0 and 2U Lockable Security Bezel |
| Power | 2 x 800W Platinum |
| Cooling | 6 hot-plug, high-performance redundant fans |
| Form Factor | 2U rack |
| Operating Systems | Microsoft® Windows Storage Server 2016, Standard Edition |
| Licenses | HPE iLO Advanced Premium Security Edition License with 1yr Support on Licensed Features |
| Dimensions | LFF Drives:8.73 x 44.54 x 73.02 cm3.44 x 17.54 x 28.75 in |
| Input Requirements(per power supply) | Rated Line Voltage: 100 to 120 VAC / 200 to 240 VAC |
| BTU Rating (Maximum) | For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China OnlyFor 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only |
Get more information
Do you have any question about the Q2P73A?
Contact us now via Live Chat or sales@metafinitivetech.com
