QFX5100-48S-AFO
Model: QFX5100-48S-AFO – Juniper QFX5100 Series Switches
Details: QFX5100. 48X10G+6X40G. 2 AC. FB
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QFX5100-48S-AFO Overview

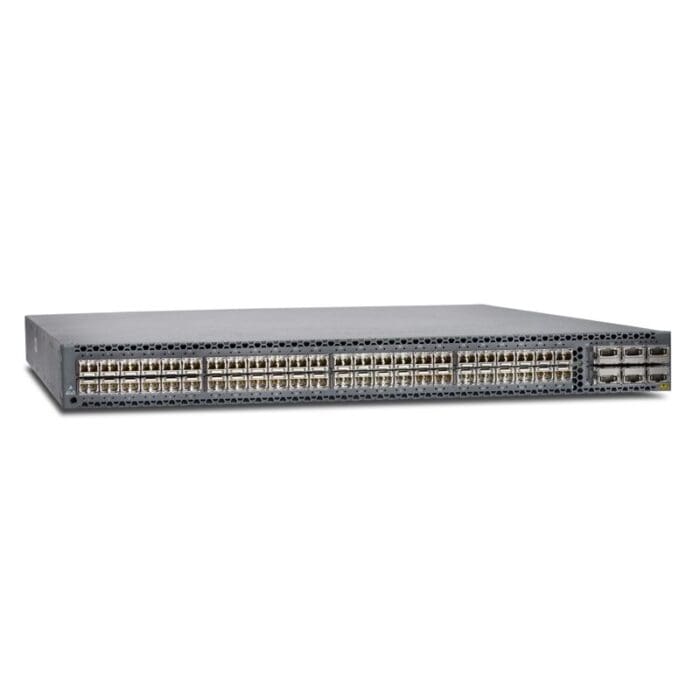

Quick Specs Figure 1 shows the appearance of QFX5100-48S-AFO.
Table 1 shows the Quick Specs.
| Model | QFX5100-48S-AFO |
| Clock Speed | 1.5 GHZ |
| Processor Brand | Intel |
| Processors Installed | 1 |
| RAM Installed | 8 GB |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Features | 12 MB shared buffer, Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), Cut-through, Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP server, DHCP snooping, DoS attack prevention, Dynamic ARP Inspection (DAI), FCoE forwarding, Flow control, Graceful Route Engine Switchover (GRES), High Availability, IGMP snooping, IPv4 support, IPv6 support, Loop prevention, Low-latency queuing (LLQ), MAC address filtering, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, Redundant trunk group (RTG), sFlow, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Trunking, Tunneling, VLAN Spanning Tree Protocol (VSTP), VLAN support, VPN support, Weighted Random Early Detection (WRED) |
| Fibre Channel | FC-BB-5, FC-BB-6 |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 288K entries |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
| Routing Protocol | Bidirectional Forwarding Detection (BFD), CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MSDP, OSPF, PIM-SM, RIP, RIP-2, Static IP routing, VRRP |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Interface Provided | 1 x console management, 1 x RJ-45 management, 1 x SFP management, 1 x USB management, 48 x SFP+, 6 x QSFP+ (breakout compatible) |
| Port Quantity | 48 |
| Port Type | 1 Gigabit SFP/ 10 Gigabit SFP+ |
| Ports Type (2nd) | 40 Gigabit QSFP+ (breakout compatible) |
