Sold out
QFX5100-48S-D-3AFI
Model: QFX5100-48S-D-3AFI – Juniper QFX5100 Series Switches
Details: QFX5100-48S AFI DC 3 MGMT PORTS
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
QFX5100-48S-D-3AFI Overview

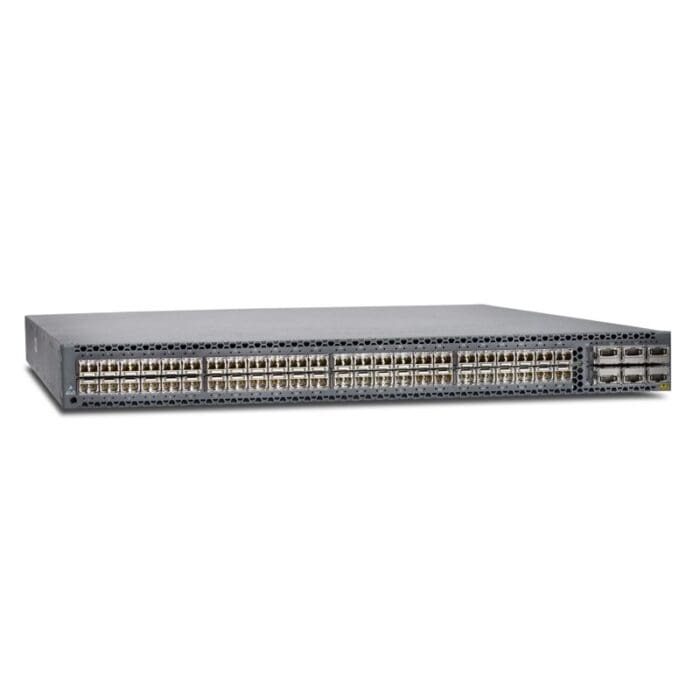

Quick Specs Figure 1 shows the appearance of QFX5100-48S-D-3AFI.
Table 1 shows the Quick Specs.
| Product Model | QFX5100-48S-D-3AFI |
| Type | Switch |
| Configuration | 48 SFP+/SFP ports |
| Management Ports | 3 |
| Power Supply Type | DC |
| Form Factor | 1U |
| Data Plane | AFI (Advanced Forwarding Interface) |
| Switching Capacity | 1.44 Tbps |
| Throughput | 1071 Mpps |
| Latency | Microseconds range |
| Operating System | Junos OS |
| Virtual Chassis Configuration | Supports up to 10 units |
| QoS Queues per Port | 8 |
| MAC Address Table Size | 288K |
| Packet Buffer | 9 MB |
| IPv4 Routes | 16,000 |
| IPv6 Routes | 8,000 |
| Multicast Groups | 4,000 |
| VLANs Supported | 4,096 |
| Operating Temperature Range | 0��C to 40��C |
| Humidity Range | 10% to 85% non-condensing |
| Certifications | FCC, CE, RoHS |
| Power Consumption | Typical: 290W, Maximum: 350W |
