QFX5120-48Y-AFO

Original price was: $10,066.00.Current price is: $9,562.70.

Model: QFX5120-48Y-AFO – Juniper QFX5120 Switch
Details: Juniper QFX5120-48Y-AFO switch, 48x25G+8x100G 1U AC port side intake and PSU side exhaust
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: QFX5120-48Y-AFO Category:
Description

QFX5120-48Y-AFO Overview

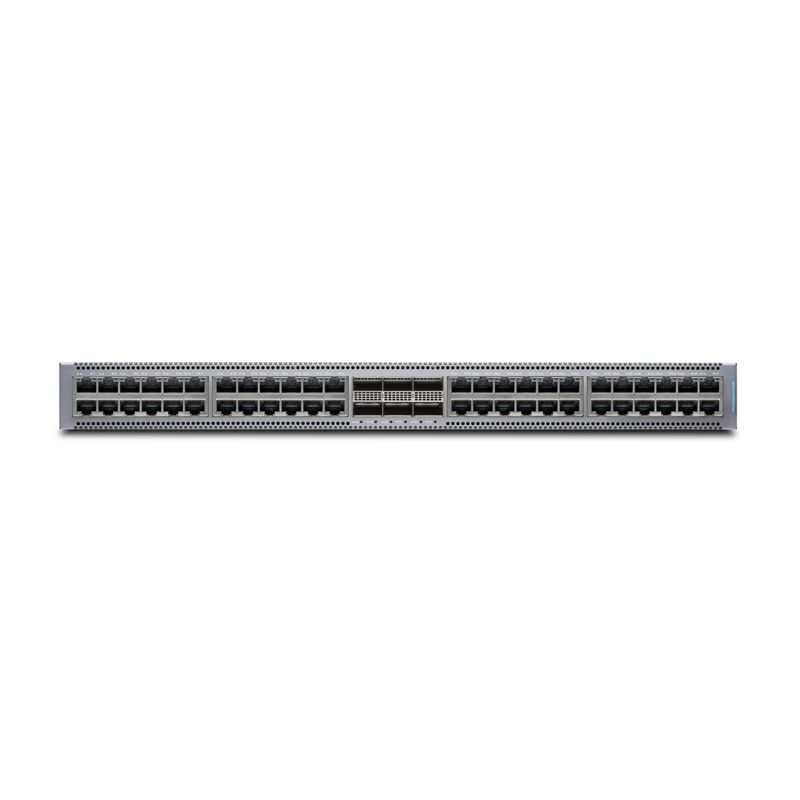

Quick Specs Figure 1 shows the appearance of QFX5120-48Y-AFO.

Table 1 shows the Quick Specs.

Switching Capacity 4 Tbps (bidirectional)/1.31 Bpps
Weight 23.7 lb (10.75 kg)
Dimensions (H x W x D) 1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)
Power Consumption *Max load: 450 W*Typical load: 260 W
Airflow *Front-to-back (airflow out) for hot aisle deployment*Back-to-front (airflow in) for cold aisle deployment
Interface Options *2 management ports: 2 x RJ-45 ports*1GbE SFP: 48 (24 copper 1GbE)*10GbE SFP+: 48/80(with breakout cable)*25GbE SFP: 48/80 (with breakout cable)*40GbE QSFP+: 8 (each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port)*100GbE QSFP28: 8 (each QSFP28 port can be configured as a 4 x 25GbE interface or as a 100 Gbps port)*SFP GbE optical and copper module*SFP+ 10GbE optical modules*SFP+ direct attach copper (DAC) cables: 1/3/5 m twinax copper and 1/3/5/7 m active twinax copper*SFP28 DAC cables: 1/3 m twinax copper*SFP28 optics: Short reach (SR), long reach (LR)*QSFP+ to SFP+: 10GbE direct attach breakout copper (1/3 m twinax copper cable)
Power Supply and Fan Modules *Dual redundant (1+1) and hot-pluggable 650 W AC/DC power supplies*100-240 V single phase AC power*-48 to -60 V DC power supply*Redundant 4+1 (QFX5120-48Y/YM and QFX5120-48T) or 5+1 (QFX5120-32C) and hot-pluggable fan modules for front-to- back or back-to-front airflow
Performance Scale (Unidimensional) *MAC addresses per system: 288,000*VLAN IDs: 4093*Number of link aggregation groups (LAGs):80 (QFX5120-48Y/YM, QFX5120-32C)64 (QFX5120-48T)*Number of ports per LAG: 64*IPv4 unicast routes: 351,000 prefixes; 208,000 host routes; 64 ECMP paths*IPv4 multicast routes: 104,000*IPv6 unicast routes: 168,000 prefixes; 104,000 host routes*IPv6 multicast routes: 52,000*Address Resolution Protocol (ARP) entries: 64,000*Jumbo frame: 9216 bytes*Spanning Tree Protocol (STP)*Multiple Spanning Tree Protocol (MSTP) instances: 64*VLAN Spanning Tree Protocol (VSTP) instances: 509*Traffic mirroringMirroring destination ports per switch: 4Maximum number of mirroring sessions: 4Mirroring destination VLANs per switch: 4
Layer 2 Features *STP—IEEE 802.1D (802.1D-2004)*Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)*Bridge protocol data unit (BPDU) protect*Loop protect*Root protect*RSTP and VSTP running concurrently*VLAN—IEEE 802.1Q VLAN trunking*Routed VLAN interface (RVI)*Port-based VLAN*Private VLAN (PVLAN)*VLAN translation*Static MAC address assignment for interface*Per VLAN MAC learning (limit)*MAC learning disable*Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad)*MACsec with AES256 (QFX5120-48YM only)*Virtual Chassis—up to 4 members
Link Aggregation *MC-LAG*LAG load sharing algorithm—bridged or routed (unicast or multicast) traffic*IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port*Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port
Layer 3 Features (IPv4) *Static routing*Routing protocols (RIP, OSPF, IS-IS, BGP)*Virtual Router Redundancy Protocol (VRRP)*Virtual router*Dynamic Host Configuration Protocol (DHCP) relay*Proxy Address Resolution Protocol (ARP)
EVPN-VXLAN Features *MAC virtual routing and forwarding (MAC-VRF) multiple EVPN instances (EVI) with service-types vlan-based, vlan-aware, vlan-bundle*Symmetric inter-IRB routing with anycast gateway and EVPN type-5 instances*Proxy IGMPv2—EVPN route types 6/7/8*ARP/ND proxy/suppression*ESI-LAG A/A multihoming using Enterprise and SP-style interfaces*Enhanced Ethernet loop detection*Filter-based forwarding on IRB.VGA*EVPN advanced route policing*VLAN-id overlapping using SP-style interfaces
Multicast Features *Internet Group Management Protocol (IGMP): v1, v2, v3*IGMP snooping: v1, v2, and v3 (Layer 2 only)*IGMP filter*Protocol Independent Multicast-Sparse Mode (PIM-SM), PIM-Source-Specific Multicast (PIM-SSM), PIM-Dense Mode (PIM-DM) in pure IP fabric use case*Multicast Source Discovery Protocol (MSDP)
Security and Filters *Secure interface login and password*RADIUS*TACACS+*Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters*Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark*SSH v1, v2*Static ARP support in pure IP fabric*Storm control, port error disable, and autorecovery*Source MAC address filtering on the port*DHCP snooping in pure IP fabric use case
Quality of Service (QoS) *L2 and L3 QoS: Classification, rewrite, queuing*Rate limiting:Ingress policing: Single-rate two-color policer, two-rate three-color policerEgress policing: Policer, policer mark down actionEgress shaping: Per queue on each port*10 hardware queues per port (8 unicast and 2 multicast)*Strict-priority queue (SPQ), shaped-deficit weighted round-robin (SDWRR), weighted random early detection (WRED), weighted tail drop*802.1p remarking*Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN*Congestion avoidance capabilities: WRED*Trust IEEE 802.1p (ingress)*Remarking of bridged packets*Default inner to outer DiffServ code point (DSCP) copy for EVPN-VXLAN
IP Storage *Priority-based flow control (PFC)—IEEE 802.1Qbb, DCBX*PFC using DSCP and explicit congestion notification (ECN) for ROCEv2
High Availability *Bidirectional Forwarding Detection (BFD)*Uplink failure detection
MPLS *Static label-switched paths (LSPs)*RSVP-based signaling of LSPs*LDP-based signaling of LSPs*LDP tunneling (LDP over RSVP)*MPLS class of service (CoS)*MPLS LSR support*IPv6 tunneling (6PE) (via IPv4 MPLS backbone)*IPv4 L3 VPN (RFC 2547, RFC 4364)
Management and Operations *Role-based CLI management and access*CLI via console, telnet, or SSH*Extended ping and traceroute*Junos OS configuration rescue and rollback*Image rollback*SNMP v1/v2/v3*Junos XML management protocol*sFlow v5*Beacon LED for port and system*ZTP*OpenStack Neutron Plug-in*Python*Junos OS event, commit, and OP scripts*JTI
Traffic Mirroring *Port-based*LAG port*VLAN-based*Filter-based*Mirror to local*Mirror to remote destinations (L2 over VLAN)
IEEE Standard *IEEE 802.1D*IEEE 802.1w*IEEE 802.1*IEEE 802.1Q*IEEE 802.1p*IEEE 802.1ad*IEEE 802.3ad*IEEE 802.1AB*IEEE 802.3x*IEEE 802.1Qbb*IEEE 802.1Qaz
T11 Standards INCITS T11 FC-BB-5
Supported RFCs *RFC 768 UDP*RFC 783 Trivial File Transfer Protocol (TFTP)*RFC 791 IP*RFC 792 ICMP*RFC 793 TCP*RFC 826 ARP*RFC 854 Telnet client and server*RFC 894 IP over Ethernet*RFC 903 RARP*RFC 906 TFTP Bootstrap*RFC 951 1542 BootP*RFC 1058 Routing Information Protocol*RFC 1112 IGMP v1*RFC 1122 Host requirements*RFC 1142 OSI IS-IS Intra-domain Routing Protocol*RFC 1256 IPv4 ICMP Router Discovery Protocol (IRDP)*RFC 1492 TACACS+*RFC 1519 Classless Interdomain Routing (CIDR)*RFC 1587 OSPF not-so-stubby area (NSSA) Option*RFC 1591 Domain Name System (DNS)*RFC 1745 BGP4/IDRP for IP—OSPF Interaction*RFC 1772 Application of the Border Gateway Protocol in the Internet*RFC 1812 Requirements for IP Version 4 Routers*RFC 1997 BGP Communities Attribute*RFC 7348 VXLAN—Virtual extensible Local Area Network*RFC 8365 NVO—Network Virtualization Overlay Solution Using Ethernet VPN (EVPN-VXLAN)*RFC 2030 SNTP, Simple Network Time Protocol*RFC 2068 HTTP server*RFC 2131 BOOTP/DHCP relay agent and Dynamic Host*RFC 2138 RADIUS Authentication*RFC 2139 RADIUS Accounting*RFC 2154 OSPF with Digital Signatures (Password, MD-5)*RFC 2236 IGMP v2*RFC 2267 Network ingress filtering*RFC 2328 OSPF v2 (edge mode)*RFC 2338 VRRP*RFC 2362 PIM-SM (edge mode)*RFC 2370 OSPF Opaque LSA Option*RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option*RFC 2439 BGP Route Flap Damping*RFC 2453 RIP v2*RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers*RFC 2597 Assured Forwarding PHB (per-hop behavior) Group*RFC 2598 An Expedited Forwarding PHB*RFC 2697 A Single Rate Three Color Marker*RFC 2698 A Two Rate Three Color Marker*RFC 2796 BGP Route Reflection—An Alternative to Full Mesh IBGP*RFC 2918 Route Refresh Capability for BGP-4*RFC 3065 Autonomous System Confederations for BGP*RFC 3376 IGMP v3 (source-specific multicast include mode only)*RFC 3392 Capabilities Advertisement with BGP-4*RFC 3446 Anycast RP*RFC 3569 SSM*RFC 3618 MSDP*RFC 3623 Graceful OSPF Restart*RFC 4271 Border Gateway Protocol 4 (BGP-4)*RFC 4360 BGP Extended Communities Attribute*RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)*RFC 4486 Subcodes for BGP Cease Notification Message*RFC 4724 Graceful Restart Mechanism for BGP*RFC 4812 OSPF Restart Signaling*RFC 4893 BGP Support for Four-octet AS Number Space*RFC 5176 Dynamic Authorization Extensions to RADIUS*RFC 5396 Textual Representation of Autonomous System (AS) Numbers*RFC 5668 4-Octet AS Specific BGP Extended Community*RFC 5880 Bidirectional Forwarding Detection (BFD) Dynamic Host Configuration Protocol (DHCP) server
Supported MIBs *RFC 1155 SMI*RFC 1157 SNMPv1*RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs*RFC 1850 OSPFv2 MIB*RFC 1901 Introduction to Community-based SNMPv2R*FC 2011 SNMPv2 for Internet Protocol using SMIv2*RFC 2012 SNMPv2 for the Transmission Control Protocol using SMIv2*RFC 2013 SNMPv2 for the User Datagram Protocol using SMIv2*RFC 2233 The Interfaces Group MIB using SMIv2*RFC 2287 System Application Packages MIB*RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework*RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access)*RFC 2572 Message Processing and Dispatching for the SNMP (read-only access)*RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3*RFC 2578 SNMP Structure of Management Information MIB*RFC 2579 SNMP Textual Conventions for SMIv2*RFC 2580 Conformance Statements for SMIv2*RFC 2665 Ethernet-like Interface MIB*RFC 2787 VRRP MIB*RFC 2790 Host Resources MIB*RFC 2819 RMON MIB*RFC 2863 Interface Group MIB*RFC 2932 IPv4 Multicast MIB*RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework*RFC 3411 An Architecture for Describing SNMP Management Frameworks*RFC 3412 Message Processing and Dispatching for the SNMP*RFC 3413 Simple Network Management Protocol (SNMP) Applications (all MIBs are supported except the Proxy MIB)*RFC 3414 User-based Security Model (USM) for version 3 of SNMPv3*RFC 3415 View-based Access Control Model (VACM) for the SNMP*RFC 3416 Version 2 of the Protocol Operations for the SNMP*RFC 3417 Transport Mappings for the SNMP*RFC 3418 Management Information Base (MIB) for the SNMP*RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework*RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model*RFC 4188 Definitions of Managed Objects for Bridges*RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol*RFC 4363b Q-Bridge VLAN MIB
Safety *CAN/CSA-C22.2 No. 62368-1-14 Information Technology Equipment—Safety*UL 62368-1 Information Technology Equipment—Safety*EN 62368-1: 2014 Information Technology Equipment—Safety*IEC 62368-1: 2014 2nd Edition Information Technology Equipment—Safety (All country deviations): CB Scheme*IEC 60950-1:2005/A2:2013 Information Technology Equipment—Safety (All country deviations): CB Scheme
EMC *EN 300 386 V1.6.1 (2012-09) Electromagnetic compatibility and radio spectrum matters (ERM) Telecommunication network equipment*EN 300 386 V2.1.1 (2016-07) Telecommunication network equipment; EMC requirements; Harmonized Standard covering the essential requirements of the Directive 2014/30/EU*EN 55032:2012 (CISPR 32:2012) Electromagnetic compatibility of multimedia equipment—Emission requirements*EN 55024:2010 (CISPR 24:2010) Information technology equipment—immunity characteristics—limits and methods of measurement*IEC/EN 61000 Immunity Test*AS/NZS CISPR 32:2015 Australia/New Zealand Radiated and Conducted Emissions*FCC 47 CFR Part 15 USA Radiated and Conducted Emissions*ICES-003 Canada Radiated and Conducted Emissions*VCCI-CISPR 32:2016 Japanese Radiated and Conducted Emissions*BSMI CNS 13438 Taiwan Radiated and Conducted Emissions (at 10 meters)*KN32/KN35 Korea Radiated Emission and Immunity Characteristics (at 10 meters)*KN61000 Korea Immunity Test*TEC/SD/DD/EMC-221/05/OCT-16 India EMC standard
Environmental Compliance *Restriction of Hazardous Substances (ROHS) 6/6*80 Plus Silver PSU Efficiency*Recycled material*Waste Electronics and Electrical Equipment (WEEE)*Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)*China Restriction of Hazardous Substances (ROHS)
Telco Common Language Equipment Identifier (CLEI) code
Environmental Ranges *Operating temperature: 32°to 104°F (0°to 40°C)*Storage temperature: -40°to 158°F (-40°to 70°C)*Operating altitude: Up to 6000 ft (1829 m)*Relative humidity operating: 5% to 90% (noncondensing)*Relative humidity nonoperating: 0% to 95% (noncondensing)
