-5%
QSFP-100G-CU5M
Model: QSFP-100G-CU5M – Cisco 100 Gigabit Optical Modules
Details: 100GBASE-CR4 Passive Copper Cable, 5m
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QSFP-100G-CU5M Overview

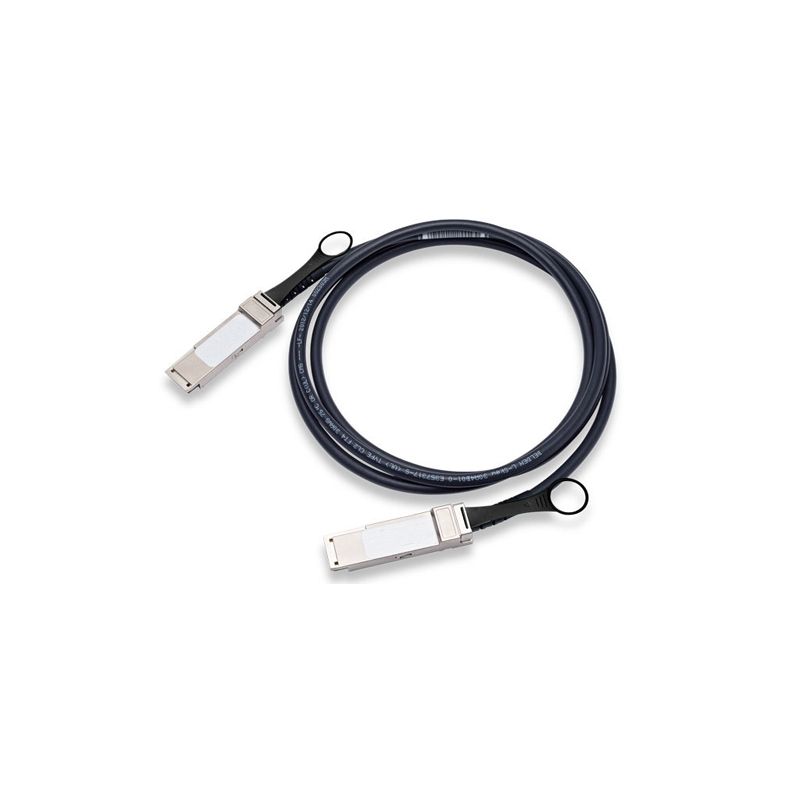

Quick Specs Figure 1 shows the appearance of QSFP-100G-CU5M.
Table 1 shows the Quick Specs.
| Description | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 5-meter |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | |
| Cable Type | Direct-attach copper cable assembly |
| Core Size (Microns) | |
| Modal Bandwidth (MHz*km)*1 | |
| Cable Distance | 5m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Gray |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C(-40 to 185°F) |
| Standards | •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013•SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014•802.3™-2012 IEEE Standard for Ethernet•IEEE 802.3ba Amendment of IEEE Std 802.3-2012•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors•RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant•QSFP copper cables are ELV compliant |
