QSFP-100G-SM-SR=
Model: QSFP-100G-SM-SR= – Cisco 100 Gigabit Optical Modules
Details: 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QSFP-100G-SM-SR= Overview

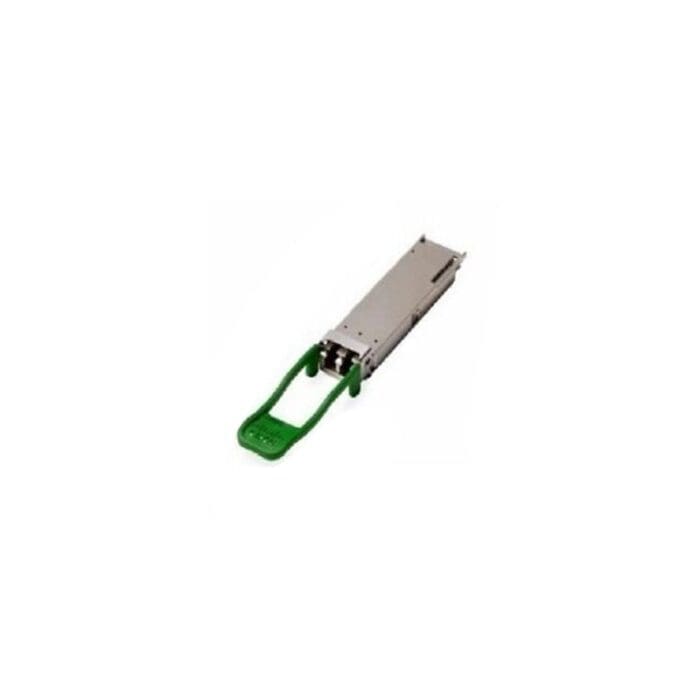

Quick Specs Figure 1 shows the appearance of QSFP-100G-SM-SR=.
Table 1 shows the Quick Specs.
| Description | Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Modal Bandwidth (MHz*km)*1 | |
| Cable Distance | 2km |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Green |
| Transmit Power (dBm) per lane*2 | Max:+2.5Min:-6.9 |
| Receive Power (dBm) per lane*2*3 | Max:+2.5Min: -11.1 |
| Receive Power (dBm) per lane | Four lanes: 1271, 1291, 1311, 1331 |
| Commercial temperature | +10 to 60°C (50 to 140°F) |
| Storage temperature | -40 to 85°C(-40 to 185°F) |
| Standards | •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013•SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014•802.3™-2012 IEEE Standard for Ethernet•IEEE 802.3ba Amendment of IEEE Std 802.3-2012•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors•RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant•QSFP copper cables are ELV compliant |
