QSFP-100GBASE-LR4
Model: QSFP-100GBASE-LR4 – Juniper Router Transceivers
Details: 100GBASE-LR4 QSFP28 pluggable module, support only Ethernet rate
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QSFP-100GBASE-LR4 Overview

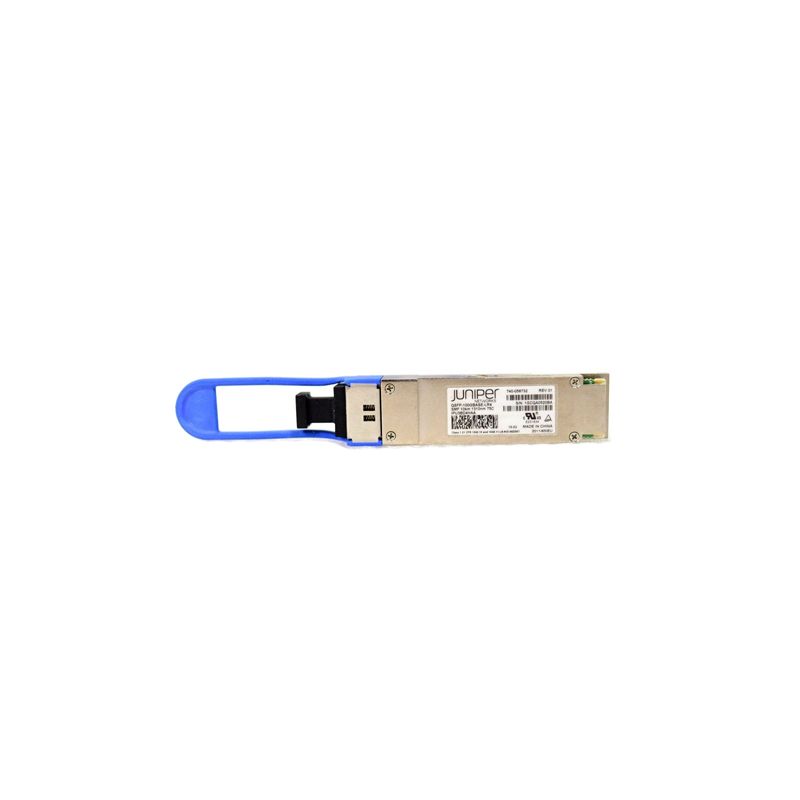

Quick Specs Figure 1 shows the appearance of QSFP-100GBASE-LR4.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model Name | QSFP-100GBASE-LR4 |
| Form Factor | QSFP28 |
| Maximum Data Rate | 100 Gbps |
| Cable Type | Single-mode fiber (SMF) |
| Wavelength | 1295 nm to 1310 nm |
| Transmission Distance | Up to 10km |
| Connector | Duplex LC |
| Operating Temperature | 0��C to 70��C |
| Power Consumption | �� 4.5 W |
| Digital Diagnostic Monitoring | Yes |
| Signal Rate | Ethernet only |
| Compliance | IEEE 802.3ba |
| Modulation | PAM4 |
| Security Features | None |
| EMC Compliance | GR-31-CORE |
| Hot-swappable | Yes |
| Backward Compatibility | Not available |
| Receiver Sensitivity | -10.6 dBm |
| Transmitter Power | -4.3 to 4.5 dBm |
| Average Power | -4.3 to 4.5 dBm |
| Noise Figure | Not specified |
| Latency | Low |
