QSFP-40G-eSR4
Model: Huawei QSFP-40G-eSR4 Optical Transceiver
Details: 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QSFP-40G-eSR4 Overview

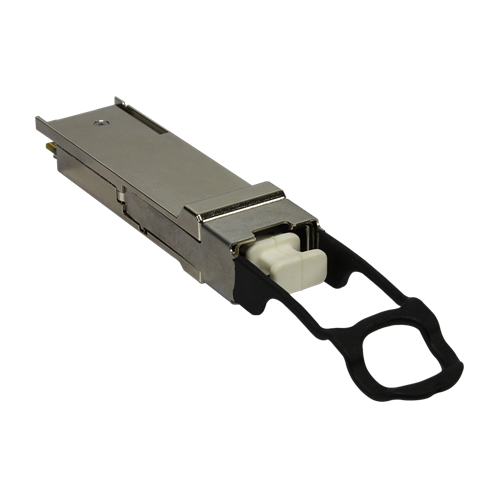

Quick Specs Figure 1 shows the appearance of QSFP-40G-eSR4.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | QSFP-40G-eSR4 |
| Transceiver Type | QSFP+ |
| Form Factor | QSFP+ |
| Data Rate | 40Gbps |
| Fiber Type | Multi-mode |
| Wavelength | 850nm |
| Maximum Distance | 0.3km |
| Connector Type | MPO |
| Compatibility | IEEE 802.3ba |
| Typical Applications | Data Centers, High-Performance Computing Networks |
| Temperature Range | 0°C to 70°C |
| Power Supply Voltage | 3.3V |
| Bit Error Rate (BER) | 1 x 10?12 |
| Technology | 40GBase-eSR4 |
| Optical Power Budget | 3dB |
| Digital Diagnostic Monitoring | Supported |
| EMC (Electromagnetic Compatibility) | Complies with EMC Regulations |
| MTBF (Mean Time Between Failures) | Greater than 1,000,000 hours |
| Safety | CSA, TUV, UL |
