-5%
QSFP-40G-SR4-S=
Model: QSFP-40G-SR4-S= – Cisco SFP GLC Module
Details: 40GBASE-SR4 (IEEE 802.3ba Spec.) QSFP+ transceiver module for MMF, MPO/MTP connector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
QSFP-40G-SR4-S= Overview

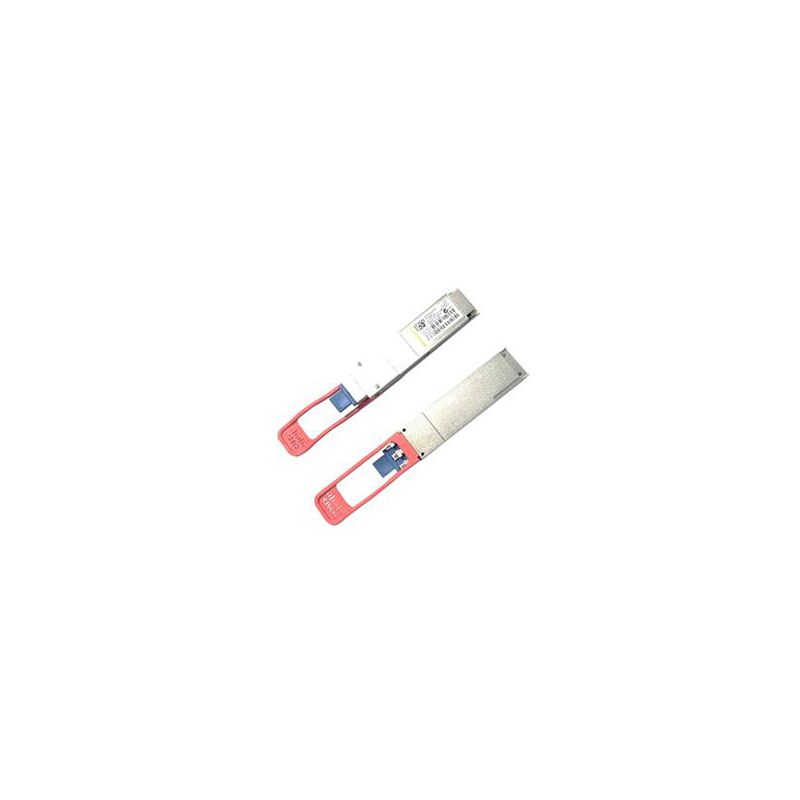

Quick Specs Figure 1 shows the appearance of QSFP-40G-SR4-S=.
Table 1 shows the Quick Specs.
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (microns) | 50.050.0 |
| Modal Bandwidth (MHz-km) | 2000 (OM3)4700 (OM4) |
| Cable Distance | 100m150m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Beige |
| Type | 40GBASE-SR4, 4 lanes, 850 nm MMF |
| Transmit Power (dBm) | Max:+2,4 per laneMin:-7.6 per lane |
| Receive Power (dBm) | Max:-2.4 per laneMin:-9.5 per lane |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Standards | •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors•IEEE 802.3ba (-SR4, -LR4)•IEEE 802.3ae (-CSR4)•QSFP+ MSA SFF-8436•SFP+ MSA SFF-8431 and -8461•RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant•QSFP copper cables are ELV Compliant |
