Model: R0X27A – Aruba 6410 Switch
Details: The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
R0X27A Overview

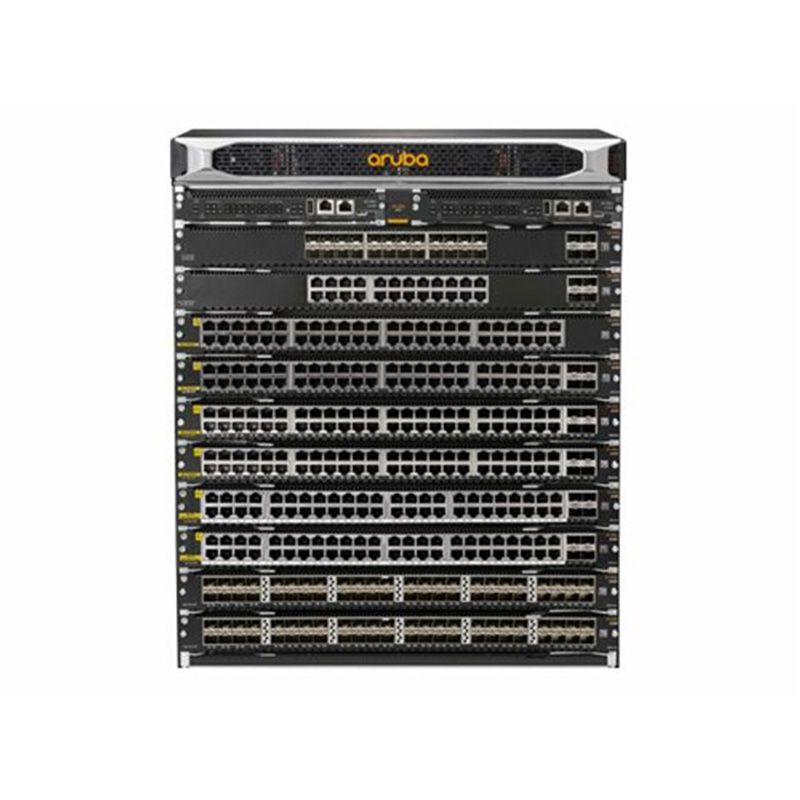

Quick Specs Figure 1 shows the appearance of R0X27A.
Table 1 shows the Quick Specs.
| Device Type | Switch – L4 – managed – stackable – with HPE Aruba 6410 Chassis Switch |
| Enclosure Type | Front to back airflow rack-mountable 7U |
| Performance | Routing/switching capacity: 28 TbpsThroughput: 20 Bpps |
| Capacity | Virtual interfaces (VLANs): 2000IPv4 routing table entries: 32000IPv6 routing table entries: 32000Multicast routes: 8000Unicast entries (IPv6): 64000Unicast entries (IPv4): 64000IGMP groups: 8000MLD groups: 4000 |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP, OSPFv3 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6 |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Power over Ethernet (PoE), Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), non blocking ports, Strict Priority (SP), CPU protection, Protocol Independent Multicast (PIM), Bootstrap Router (BSR) Mechanism, draft-ietf-savi-mix, Virtual Switch Extension (VSX) |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, UL 60950-1, VCCI Class A, GB 9254, IEC 60950-1:2005 Second Edition, CSA 22.2 No. 60950-1, EN 55022 Class A, FCC CFR47 Part 15 A, IEC 60825:2007, UL 62368-1 Second Edition, CISPR 32:2012 Class A, EN 55032:2012 Class A, EN 62368-1:2014, Am1: 2009 + Am2: 2013, EN 55024:2010 + A1:2001 + A2:2003, ETSI EN 300 386 V1.3.3, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Interfaces | 1 x console RJ-451 x USB-C console1 x USB |
| Installed Modules Qty (Max) | 2 (installed) / 10 (max) |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 4 |
| Voltage Required | 110-127 / 200-240 VAC (power supplies sold separately) |
| 80 PLUS Certification | 80 PLUS Platinum |
| Included Accessories | 4 x fan tray slots, management module with 1 open slot |
| Rack Mounting Kit | Included |
| Width | 17.4 in |
| Depth | 17.7 in |
| Height | 20.8 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 – 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 – 95% (non-condensing) |
