R8N87A

Original price was: $864.00.Current price is: $820.80.

Model: Aruba 6000 24G Class4 PoE 4SFP 370W Switch
Details: The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: R8N87A Categories: , , ,
Description

R8N87A Overview

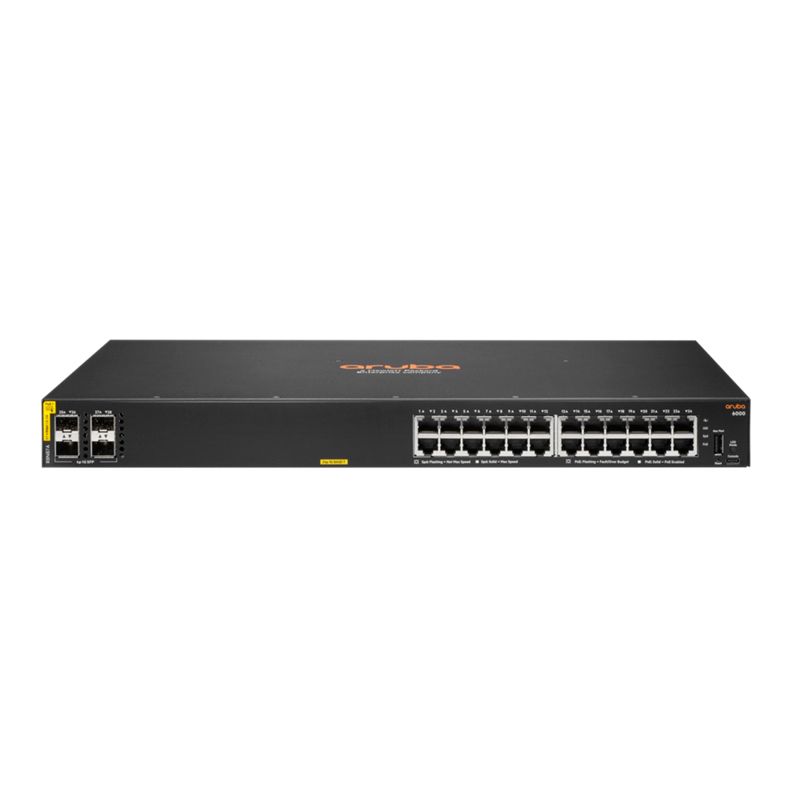

Quick Specs Figure 1 shows the appearance of R8N87A.

Table 1 shows the Quick Specs.

Device Type Switch – 24 ports – managed – stackable
Enclosure Type Side to side airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE
PoE Budget 370 W
Performance Packet buffer size: 12.38 MB | Throughput: 41.6 Mpps | Switching capacity: 56 Gbps | Latency (1 Gbps): 1.5 µs
Capacity Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Jumbo Frame Support 9198 bytes
Routing Protocol IGMPv2, IGMPv3
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snooping, Trusted Platform Module (TPM), fanless, LACP support, LLDP support, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, EN55024:2010:A1, IEC 62368-1 Second Edition
Processor 1 x ARM A9: 1.016 GHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB
Interfaces 24 x 10/100/1000 Base-T RJ-45 PoE Class 4 – 370 W | 4 x Gigabit LAN SFP | 1 x USB Type A | 1 x USB-C console
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 32.7 Watt
Width 17.4 in
Depth 10.6 in
Height 1.7 in
Service & Support Limited warranty – lifetime
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 15 – 95% (non-condensing)
Humidity Range Storage 15 – 90% (non-condensing)

Get more information
Do you have any question about the R8N87A?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

Not Available.
