RSP720-3C-10GE (USED)
Model: Cisco 7600 Router Switch Processor 720Gbps fabric, PFC3C, 10G
Details: Cisco 7600 Router Switch Processor 720Gbps fabric, PFC3C, 10G
Condition: Used
Warranty: 3 Years Warranty.
Description
RSP720-3C-10GE (USED) Overview

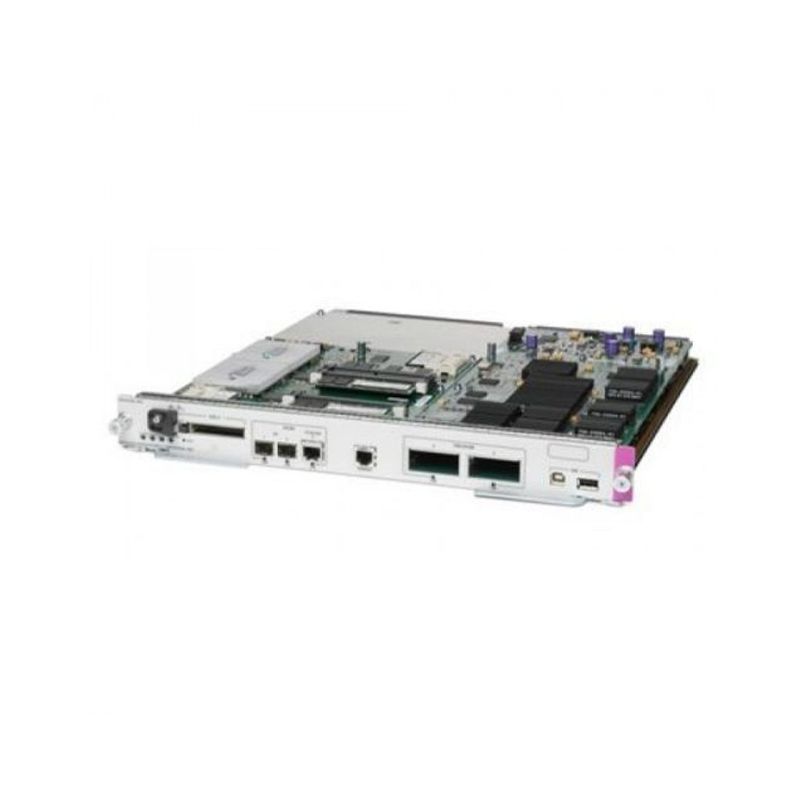

Quick Specs Figure 1 shows the appearance of RSP720-3C-10GE (USED).
_1.png)
Table 1 shows the Quick Specs.
| Device Type | Router |
| Enclosure Type | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps |
| Capacity | ACL rules: 128000 ¦ IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000 |
| Network / Transport Protocol | TCP/IP, ICMP/IP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM, GRE |
| Features | Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | IEEE 802.1x, CISPR 22 Class A, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, EN300-386, FCC CFR21 Part 1040, FCC Part 15 A, IEC 60825-1, EN 60825-1, AS/NZS 3548 Class A, EN 60825-2, IEC 60825-2 |
| RAM | 2 GB (installed) / 6 GB (max) |
| Flash Memory | 512 MB |
| Status Indicators | System, active, status, link/activity |
| Interfaces | Management: 1 x console – RJ-45 ¦ 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2 ¦ 1 x USB – 4 pin USB Type B ¦ 1 x USB – 4 pin USB Type A |
| Expansion Slots | 2 (total) / 1 (free) x CompactFlash Card – type II |
| MTBF | 80,000 hours |
| Width | 15.4 in |
| Depth | 17 in |
| Height | 1.6 in |
| Weight | 11.76 lbs |
| Service & Support | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Designed For | Cisco 7603-S, 7604, 7604 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613 Security Bundle |
