RT-AX88U
Model: RT-AX88U – ASUS WiFi Systems
Details: AX6000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro, built-in wtfastR game accelerator and Adaptive QoS
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
RT-AX88U Overview

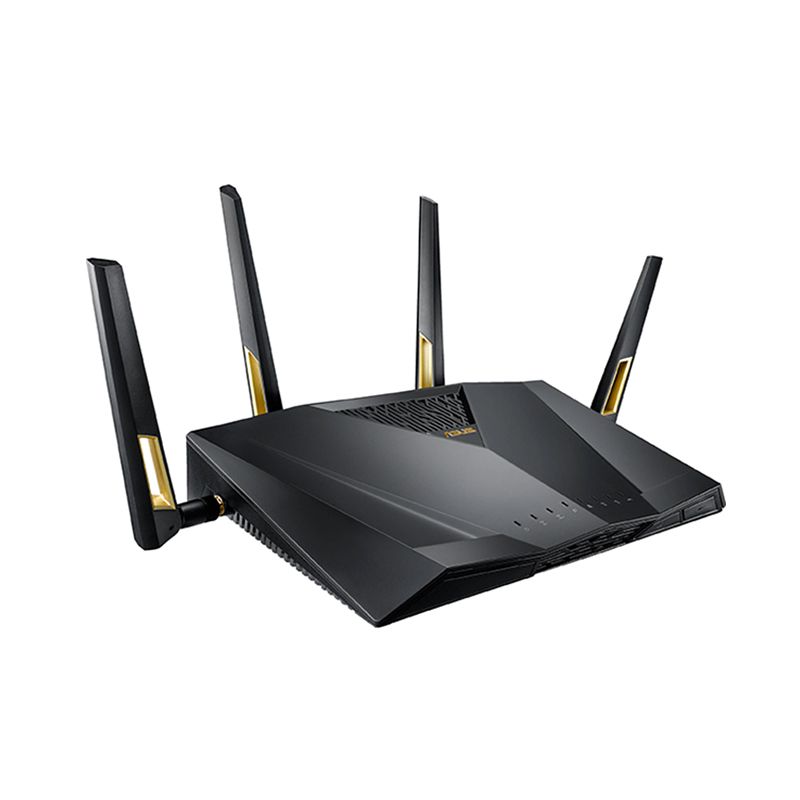

Quick Specs Figure 1 shows the appearance of RT-AX88U.
Table 1 shows the Quick Specs.
| Network Standard | IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6 |
| Product Segment | AX6000 ultimate AX performance : 1148+4804 Mbps |
| AX technology | Yes |
| Data Rate | 802.11a : up to 54 Mbps802.11b : up to 11 Mbps802.11g : up to 54 MbpsWiFi 4 (802.11n) : up to 600 MbpsWiFi 4 (802.11n) (1024QAM) : up to 1000 MbpsWiFi 5 (802.11ac) : up to 3466 MbpsWiFi 5 (802.11ac) (1024QAM) : up to 4333 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 1148 MbpsWiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4GHz 4x45GHz 4×4 |
| Processor | 1.8 GHz quad-core processor |
| Memory | 256 MB Flash, 1 GB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access),Beamforming: standard-based and universal,1024-QAM high data rate,20/40/80/160 MHz bandwidth, |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN x 1,RJ45 for Gigabits BaseT for LAN x 8,USB 3.1 Gen 1 x 2 |
| Button | WPS Button,Reset Button,Power Button,Wireless on/off Button,LED on/off Button |
| LED Indicator | Power x 1Wi-Fi x 2WAN x 1LAN x 1USB x 2WPS x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 2.37 A current |
| Product Weight (g) | 1010 g |
| AiMesh | AiMesh : YesPrimary AiMesh router : YesAiMesh node : Yes |
| Router APP | ASUS Router APP : Yes |
| Game | Game Boost/acceleration : YesWTFast : Yes |
| Alexa | Support Alexa skil : Yes |
| IFTTT | Support IFTTT : Yes |
| AiProtection | AiProtection : AiProtection ProRouter Security Assessment : YesMalicious site blocking : YesTwo-Way IPS : YesInfected Device Prevention and Blocking : Yes |
| Parental Control | Parental Control : YesParental Control Customized Internet schedule : Yes |
| Traffic Control | Adaptive QoS : YesBandwidth Monitor : YesBandwidth limiter : YesMaximum Bandwidth limiter rule : 32Traditional QoS : YesMaximum Traditional QoS rule : 32Traffic Monitor : YesReal-time traffic monitor : YesWired Traffic Monitor : YesWireless Traffic Monitor : YesTraffic Analyzer : YesTraffic analysis period : Daily, Weekly, MonthlyWebsite history : Yes |
| Wireless | IPv6 : YesMU-MIMO : YesWi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseUTF-8 SSID : YesGuest Network : YesMaximum Guest Network rule : 2.4GHz x3, 5GHz x3Guest Network Encryption : Open system, WPA/WPA2/WPA3-PersonalWPS : YesWi-Fi MAC address filter : YesMaximum MAC filters : 64Wireless scheduler : YesAirtime fairness : YesRADIUS Server : YesUniversal beamforming : YesExplicit beamforming : YesIGMP snooping : Yes |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN : YesWAN Aggregation : Yes3G/4G LTE dongle : YesAndroid tethering : YesPort forwarding : YesMaximum port forwarding rule : 64Port triggering : YesMaximum port triggering rule : 32DMZ : YesDDNS : YesNAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN | DHCP Server : YesIPTV : YesLAN Link Aggregation : YesManually assign IP address : YesMaximum manually assign IP address rule : 64 |
| VPN | VPN Client L2PT : YesVPN Client OVPN : YesVPN Client PPTP : YesVPN Server IPSec : YesVPN Server OVPN : YesVPN Server PPTP : YesVPN Fusion : No |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext43G/4G LTE dongle : YesHDD hibernation : YesSafely Remove disk : YesAiCloud : YesDownload master : YesAiDisk : YesMedia Server : YesTime Machine : YesSamba Server : YesFTP Server : YesShared Folder privileges : Yes |
| Administration | Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, RouterOperating system : ASUSWRTFree OS upgrade : YesFirewall : YesMaximum Firewall keyword filter : 64Maximum Firewall network service filter : 32Maximum Firewall URL filter : 64Wake on LAN (WOL) : YesSSH : YesConfiguration backup and restore : YesDiagnosis tools : YesFeedback system : YesSystem log : Yes |
