RV260P-K9-G5
Model: RV260P-K9-G5 – Cisco RV200 VPN Routers
Details: Cisco RV260P 9-Port Gigabit VPN Router with PoE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
RV260P-K9-G5 Overview

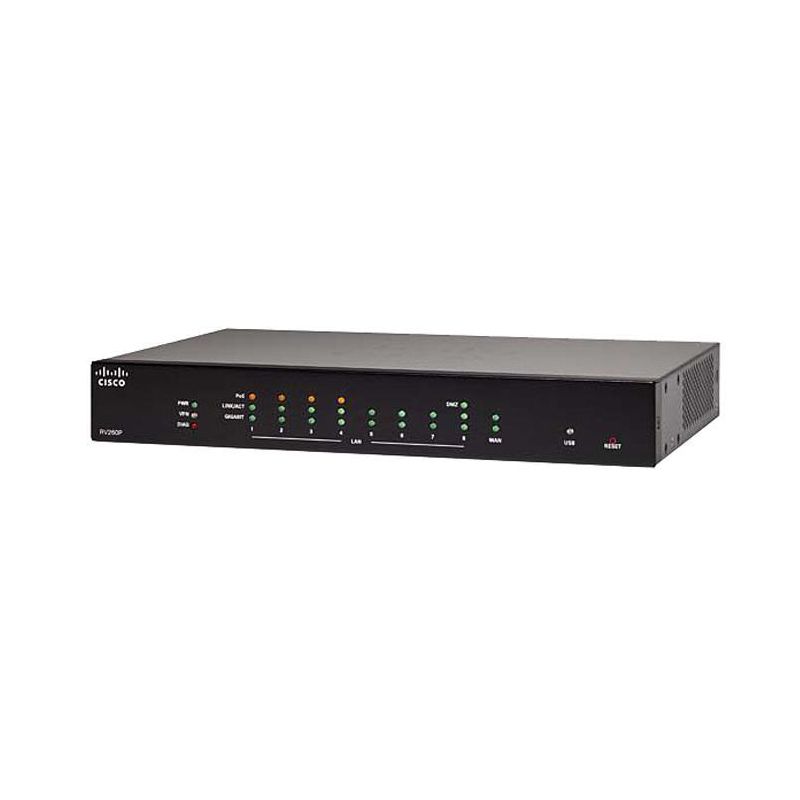

Quick Specs Figure 1 shows the appearance of RV260P-K9-G5.
Table 1 shows the Quick Specs.
| Device Dimension | L x W x H:279x170x38.5 mm |
| Ethernet WAN | 1 RJ-45 SFP Gigabit combination port |
| Ethernet LAN | 8 RJ-45 Gigabit Ethernet portsRV260P has 4 PoE ports with a 60W power budget |
| Console port | 1 RJ-45 port |
| Switch | Power on/off |
| Cabling type | Category 5 or better |
| LEDs | Power, VPN, WAN, LAN |
| Operating system | Linux |
| VLANs | 16 |
| Port security | Yes, 802.1X |
| IPv6 | Dual stack, 6rd, 6in4 |
| WAN | Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over Ethernet (PPPoE), PPTP, Layer 2 Tunneling Protocol (L2TP) |
| WLAN | 3×3 802.11ac Wave 2 |
| Firewall | SPI firewall |
| Access control | IP access control lists |
| Secure management | HTTPS, username/password complexity |
| User privileges | Two levels of access: Admin and guest |
| Network protocols | • Dynamic Host Configuration Protocol (DHCP) server• Point-to-Point Protocol over Ethernet (PPPoE)• Point-to-Point Tunneling Protocol (PPTP)-   Layer 2 Tunneling Protocol (L2TP)• DNS proxy• DHCP relay agent• Internet Group Management Protocol (IGMP) proxy and multicast forwarding• Rapid Spanning Tree Protocol (RSTP)• Dynamic DNS (DynDNS, No-IP, ChangeIP)• Network Address Translation (NAT), Port Address Translation (PAT)• One-to-one NAT• Port management• Port mirroring• Software-configurable DMZ to any LAN IP address-   Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
| Routing protocols | • Static routing, IGMP proxy• Dynamic routing• Routing Information Protocol (RIP) v1 and v2• RIP for IPv6 (RIPng)-  Inter-VLAN routing |
| NAT protocol | Port Address Translation (PAT), Network Address Port Translation (NAPT) |
| Gateway-to-gateway IPsec VPN | 20 IPsec tunnels |
| Client-to-gateway IPsec VPN | 20 IPsec tunnels |
| IPsec VPN | Internet Key Exchange (IKE) v2, Generic Routing Encapsulation (GRE), hub and spoke supported |
| PPTP VPN | 20 PPTP VPN tunnels |
| OpenVPN | Support for the OpenVPN server |
| Encryption | Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) with 128, 192, and 256-bit keys encryption |
| VPN pass-through | IPsec, PPTP, and L2TP pass-through |
| QoS | • 802.1p port-based priority on LAN port, application-based priority on WAN port• 4 queues• Differentiated Services Code Point (DSCP) support• Class of Service (CoS)• Bandwidth management for service prioritization |
| Jumbo frame support | Supports jumbo frames on Gigabit ports–at least 1536B |
| NAT throughput | 800+ Mbps |
| Concurrent sessions | 25,000 |
| IPsec VPN throughput | 75+ Mbps |
| Web-based user interface | Browser-based configuration (HTTP/HTTPS) |
| Management | Web-based user interface, Simple Network Management Protocol (SNMP) v3, Bonjour, PnPCommand-line interface via console–limited configuration command supportFindIT support for monitoring and management |
| Event logging | Local, syslog, email alerts |
| Network diagnostics | Ping, traceroute, DNS lookup |
| Upgradability | Firmware upgradable via browser UI, imported/exported file, USB, Cisco FindIT |
| System time | Network Time Protocol (NTP), Daylight Savings, manual entry |
| Language support | User interface support: English |
| Power | 54VDC/1.67A |
| Operating temperature | 0°to 40°C (32°to 104°F) |
| Storage temperature | -20°to 70°C (-4°to 158°F) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
| Certifications | Safety:• UL 60950-1• CAN/CSA-C22.2 No. 60950-1• IEC 60950-1• EN 60950-1Radio approvals:• FCC Part 15.247, 15.407• RSS-210 (Canada)• EN 300.328, EN 301.893 (Europe)• AS/NZS 4268.2003 (Australia and New Zealand)EMI and susceptibility:• FCC Part 15.107 and 15.109• ICES-003 (Canada)• EN 301.489-1 and -17 (Europe)-   RV260/RV260P rackmount: Class A |
