RV340-K9-G5
Model: RV340-K9-G5 – Cisco RV300 VPN Routers
Details: Cisco RV340 Dual WAN Gigabit VPN Router
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
RV340-K9-G5 Overview

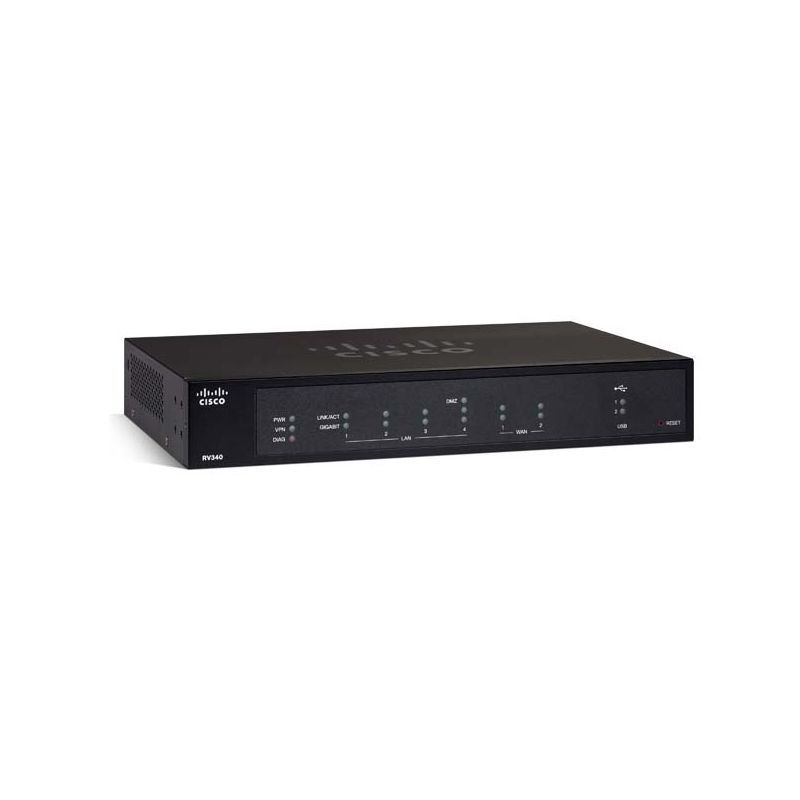

Quick Specs Figure 1 shows the appearance of RV340-K9-G5.
Table 1 shows the Quick Specs.
| WAN ports | 2 RJ-45 Gigabit Ethernet |
| LAN ports | 4 RJ-45 Gigabit Ethernet(LAN 1, 2, 3, 4 and LAN 9, 10, 11, 12 are PoE 802.3at, max 30W per port up to 120W total) |
| Console/serial | 1 RJ-45 port for future use. Port is disabled |
| USB | 2 for external 3G/4G modem or flash drive (USB-3, USB-2) |
| Firewall | Stateful packet inspection, up to 980 Mbps throughput for TCP and UDP |
| Quality of Service (QoS) | Traffic Classes, WAN Queuing, WAN Policing, WAN Bandwidth Management, Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device |
| Web Security | Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified |
| Application Visibility | Application identification: Assign policies to Internet applications500 unique Apps |
| Client Identification | Identifies and categorizes clients dynamically. Assigns policies based on end device category and operating system. |
| Intrusion Prevention System | IDS/IPS inspects network packets, logs and/or blocks a wide range of network attacks. It delivers increased network availability, faster remediation, and comprehensive threat protection.HTTP/FTP/SMTP/POP3/IMAP |
| Antivirus | Protection from viruses, trojans, spyware, and identity theft by inspecting traffic going through the router.HTTP/FTP/SMTP/POP3/IMAP |
| Cisco Umbrella | First line of defense for threats on the Internet. Prevention for user and malware-initiated connections. Protection against Malware, C2 callbacks, and phishing. Proxy inspection for risky domains. |
| IPSec | IKEv1 and IKEv250 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput |
| IPsec remote access | Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN EasyVPN) |
| Layer 2 Tunneling Protocol (L2TP) over IPsec | Yes |
| Generic Routing Encapsulation (GRE) over IPsec | Yes |
| Cisco SSL VPN (Cisco AnyConnect) | Maximum 50 SSL VPN tunnels and up to 33Mbps throughput. Also requires Cisco AnyConnect end user licenses to use on the end device. Ideal for mobile devices. |
| Point-to-Point Tunneling Protocol (PPTP) | 25 connections, up to 100 Mbps throughput |
| Teleworker mode (Cisco IPsec VPN) | Router acts as a client to connect to central VPN gateway in teleworker mode |
| VPN pass-through | IPSec, PPTP, L2TP |
| Management protocols | Web browser (HTTP/HTTPS)Simple Network Management Protocol (SNMP) v1, v2c, and v3Representational State Transfer (REST) APINETCONF |
| Management Platform | FindIT Network Manager |
| Firmware upgrade options | Via local PC, USB stick, or from Cisco.com via web browser.Unattended automatic firmware upgrade. |
| VLAN | Up to 32 VLANs |
| Port Security | Yes, 802.1X |
| Link aggregation | Yes (static, no LACP) |
| IPv6 | Dual stack, 6rd, 6in4, Dual stack lite |
| WAN | DHCP client, static IP, PPPoE, PPPTP, L2TP, transparent bridge |
| Routing | Static routing, IGMP proxy, Inter-VLAN routing, Routing Information Protocol RIPv1,v2, RIPng |
| Network Address Translation (NAT) | Port ForwardingPort Address Translation (PAT)One-to-one NATVPN NAT traversalSession Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG |
| NAT max sessions | >40000 |
| NAT max connections per second | 3000 |
| DynDNS | ChangeIP.com, DynDNS.com, No-IP.com, dnsomatic |
| IPv6 transition | Dual Stack |
| Hardware DMZ | Yes (when enabled, one LAN port will be DMZ port) |
| DMZ host | Yes |
| CPU | ARM-based architecture, dual core, hardware flow engine900 Mhz |
| RAM | 1 GB DDR3 |
| Flash | 256 MB |
| RV340excluding antennas | 280 x 44 x 170 mm (11 x 1.75 x 6.75 in) |
| MTBF | 50000 hours |
| Rack mountable | Yes |
| Included accessories | Power supply, power cord, ethernet cable |
| Fan | No |
| Power Supply | AC 100-240V/1A DC 12V/2.5A DC |
| Certification | FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel |
| Operating temperature | 0°to 40°C (32°to 104°F) |
| Storage temperature | 0°to 70°C (32°to 158°F) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
