RV340W-E-K9-G5
Model: RV340W-E-K9-G5 – Cisco RV300 VPN Routers
Details: Cisco RV340W Wireless-AC Dual WAN Gigabit VPN Router
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
RV340W-E-K9-G5 Overview

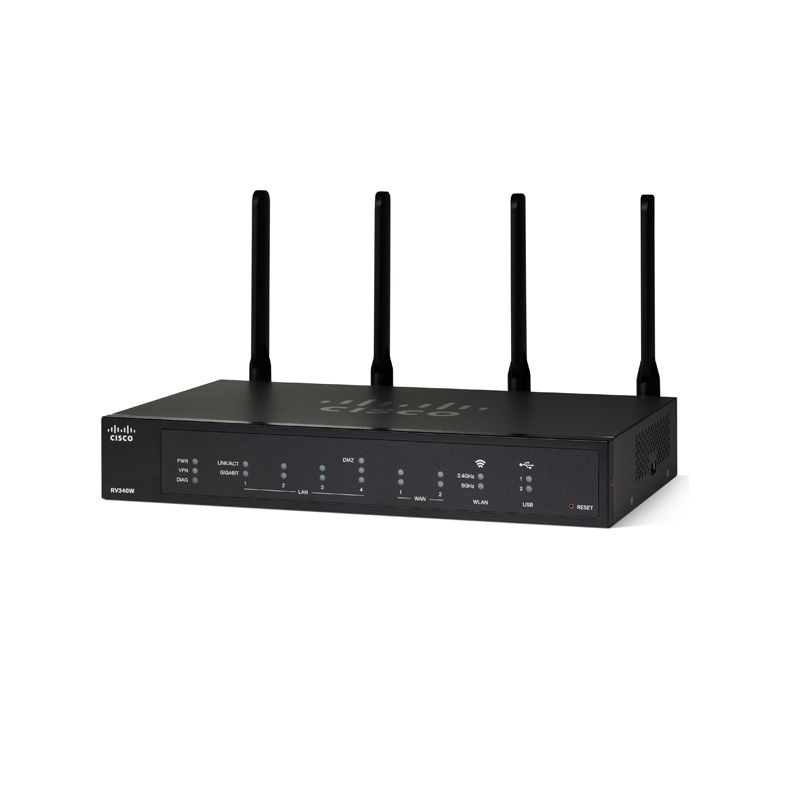

Quick Specs Figure 1 shows the appearance of RV340W-E-K9-G5.
Table 1 shows the Quick Specs.
| WAN ports | 2 RJ-45 Gigabit Ethernet |
| LAN ports | 4 RJ-45 Gigabit Ethernet(LAN 1, 2, 3, 4 and LAN 9, 10, 11, 12 are PoE 802.3at, max 30W per port up to 120W total) |
| Console/serial | 1 RJ-45 port for future use. Port is disabled |
| USB | 2 for external 3G/4G modem or flash drive (USB-3, USB-2) |
| Firewall | Stateful packet inspection, up to 980 Mbps throughput for TCP and UDP |
| Quality of Service (QoS) | Traffic Classes, WAN Queuing, WAN Policing, WAN Bandwidth Management, Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device |
| Web Security | Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified |
| Application Visibility | Application identification: Assign policies to Internet applications500 unique Apps |
| Client Identification | Identifies and categorizes clients dynamically. Assigns policies based on end device category and operating system. |
| Intrusion Prevention System | IDS/IPS inspects network packets, logs and/or blocks a wide range of network attacks. It delivers increased network availability, faster remediation, and comprehensive threat protection.HTTP/FTP/SMTP/POP3/IMAP |
| Antivirus | Protection from viruses, trojans, spyware, and identity theft by inspecting traffic going through the router.HTTP/FTP/SMTP/POP3/IMAP |
| Cisco Umbrella | First line of defense for threats on the Internet. Prevention for user and malware-initiated connections. Protection against Malware, C2 callbacks, and phishing. Proxy inspection for risky domains. |
| IPSec | IKEv1 and IKEv250 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput |
| IPsec remote access | Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN EasyVPN) |
| Layer 2 Tunneling Protocol (L2TP) over IPsec | Yes |
| Generic Routing Encapsulation (GRE) over IPsec | Yes |
| Cisco SSL VPN (Cisco AnyConnect) | Maximum 50 SSL VPN tunnels and up to 33Mbps throughput. Also requires Cisco AnyConnect end user licenses to use on the end device. Ideal for mobile devices. |
| Point-to-Point Tunneling Protocol (PPTP) | 25 connections, up to 100 Mbps throughput |
| Teleworker mode (Cisco IPsec VPN) | Router acts as a client to connect to central VPN gateway in teleworker mode |
| VPN pass-through | IPSec, PPTP, L2TP |
| Management protocols | Web browser (HTTP/HTTPS)Simple Network Management Protocol (SNMP) v1, v2c, and v3Representational State Transfer (REST) APINETCONF |
| Management Platform | FindIT Network Manager |
| Firmware upgrade options | Via local PC, USB stick, or from Cisco.com via web browser.Unattended automatic firmware upgrade. |
| VLAN | Up to 32 VLANs |
| Port Security | Yes, 802.1X |
| Link aggregation | Yes (static, no LACP) |
| IPv6 | Dual stack, 6rd, 6in4, Dual stack lite |
| WAN | DHCP client, static IP, PPPoE, PPPTP, L2TP, transparent bridge |
| Routing | Static routing, IGMP proxy, Inter-VLAN routing, Routing Information Protocol RIPv1,v2, RIPng |
| Network Address Translation (NAT) | Port ForwardingPort Address Translation (PAT)One-to-one NATVPN NAT traversalSession Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG |
| NAT max sessions | >40000 |
| NAT max connections per second | 3000 |
| DynDNS | ChangeIP.com, DynDNS.com, No-IP.com, dnsomatic |
| IPv6 transition | Dual Stack |
| Hardware DMZ | Yes (when enabled, one LAN port will be DMZ port) |
| DMZ host | Yes |
| CPU | ARM-based architecture, dual core, hardware flow engine1.2 Ghz |
| RAM | 1 GB DDR3 |
| Flash | 256 MB |
| Standards | IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS) |
| Antennas | 4 external fixed paddle antennas (RV340W) |
| 802.1X supplicant | Yes |
| SSID-to-VLAN mapping | Yes |
| Auto channel selection | Yes |
| WPA/WPA2 | Yes, including enterprise authentication |
| Access control | Yes, MAC filtering |
| Rouge access point detection | No |
| QoS | Wi-Fi Multimedia (WMM) with unscheduled automatic power save |
| Wireless throughput | PHY data rate:2.4 GHz: 450 Mbps 964-QAM), 600 Mbps (256-QAM)5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)Total: Up to 2.7 Gbps(real-world throughput will vary) |
| Recommended user support | Up to 50 users at 2.4 GHz and 124 users at 5 GHz simultaneously |
| Captive Portal for guest access | Yes |
| Frequency | Dual concurrent radios (2.4 and 5 GHz) |
| WLAN | 802.11n/ac4x4 MU-MIMO with 4 partial streams at 5GHz3x3 MIMO with 3 spatial streams at 2.4 GHz20 MHz, 40 MHz and 80 MHZ channels for 802.11ac20 MHz and 40 MHz channels for 802.11nPHY data rate:2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM)5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)Total: up to 2.7 Gbps802.11 Dynamic Frequency Selection (DFS)MU-MIMO up to 3 clients simultaneously |
| Data rates supported | 802.11 a/b/g:• 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps• 802.11n: 6.5 to 450 Mbps- 20-MHz bandwidth: MCS 0-15 for supported data rates- 40-MHz bandwidth: MCS 0-15 for supported data rates802.11ac:• 6.5 Mbps to 1.7 Gbps- 20-MHz bandwidth: MCS 0-9 for supported data rates- 40-MHz bandwidth: MCS 0-9 for supported data rates- 80-MHz bandwidth: MCS 0-9 for supported data rates |
| Frequency band and operating channels | E (E regulatory domain):2412 to ~2472 MHz: 13 channels5.15 to 5.25 GHz: 4 channels5.25 to 5.35 GHz: 4 channels5.47 to 5.725 GHz: 8 channels |
| Transmitter output power | 2.4 GHz• 802.11b: 17.5 +/- 2 dBm• 802.11g: 17.5 +/- 2 dBm @ 6 Mbps• 802.11g: 15.5 +/- 2 dBm @ 54 Mbps• 802.11n (HT20): 17.5 +/- 2 dBm @ MCS0• 802.11n (HT20): 15.5 +/- 2 dBm @ MCS7• 802.11n (HT40): 15.5 +/- 2 dBm @ MCS75 GHz• 802.11a: 18.5 +/- 2 dBm @ 6 Mbps• 802.11a: 14 +/- 2 dBm @ 54 Mbps• 802.11n (HT20): 14 +/- 2 dBm @ MCS7• 802.11n (HT40): 14 +/- 2 dBm @ MCS7• 802.11ac (VHT80): 12.0 +/- 2 dBm @ VHT9SS |
| Wireless isolation | Wireless isolation between clients |
| Antenna gain in dBi | 2.4 GHz: 3 dBi each antenna5 GHz: 5 dBi each antenna |
| Receiver sensitivity | 2.4 GHz• 802.11b: -82 dBm @ 11 Mbps• 802.11g: -71 dBm @ 54 Mbps• 802.11n (HT20): -69 dBm @ MCS7• 802.11n (HT40): -67 dBm @ MCS75 GHz• 802.11ac (VHT20): -59 dBm @ MCS8• 802.11ac (VHT40): -54 dBm @ MCS9• 802.11ac (VHT80): -51 dBm @ MCS9 |
| Wireless Distribution System (WDS) | No |
| RV340Wexcluding antennas | 280 x 44 x 170 mm (11 x 1.75 x 6.75 in) |
| RV340W with antennas | 280 x 44 x 315 mm (11 x 1.75 x 12.40 in) |
| MTBF | 50000 hours |
| Rack mountable | No |
| Included accessories | Power supply, power cord, ethernet cable |
| Fan | No |
| Power Supply | AC 100-240V/1A DC 12V/3A |
| Certification | FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel |
| Operating temperature | 0°to 40°C (32°to 104°F) |
| Storage temperature | 0°to 70°C (32°to 158°F) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
