S1700-24-AC
Model: S1700-24-AC 98010455 Huawei Quidway S1700 Switch
Details: Huawei Quidway Switch S1700, S1700-24 Mainframe(24 10/100Base-T,AC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S1700-24-AC Overview

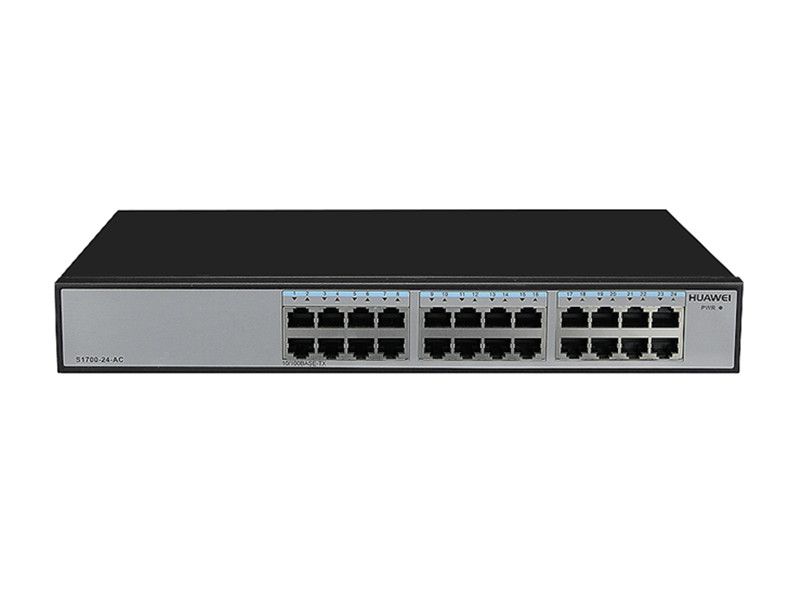

Quick Specs Figure 1 shows the appearance of S1700-24-AC.
Table 1 shows the Quick Specs.
| Type | Unmanaged Switch |
| Downlink port | Twenty-four 10/100 M electrical ports |
| Uplink port | Shared with downlink ports |
| Packet forwarding rate | 3.6 Mpps |
| Switching capacity | 4.8 Gbit/s |
| MAC address table | 8 K MAC |
| EEE | Not supported |
| Maintenance | Maintenance-free Switch |
| Power supply | AC:Rated voltage: 100 V to 240 V, 50/60 HzMaximum voltage: 90 V to 264 V, 50/60 Hz |
| Input voltage | 100 V to 240 V AC,50/60 Hz |
| Operating environment | Operating temperature: 0°C to 45°C (long term); –5°C to 50°C (short term) |
| Humidity(noncondensing) | 20% to 85% |
| Storage humidity(noncondensing) | 10% to 90% |
| Heat dissipation | natural heat dissipation |
| Dimensions: width x depth x height | 320*208*43.6mm |
| Weight | <5 kg |
| Power consumption | <10W |
