Name: S1700-28GFR-4P-AC
SKU: S1700-28GFR-4P-AC
Availability: OutOfStock

S1700-28GFR-4P-AC

$0.00

Model: S1700-28GFR-4P-AC Huawei S1700 Series Switch
Details: S1700-28GFR-4P-AC(24 Gigabit Ethernet ports ,4 Gig SFP,AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

S1700-28GFR-4P-AC Overview

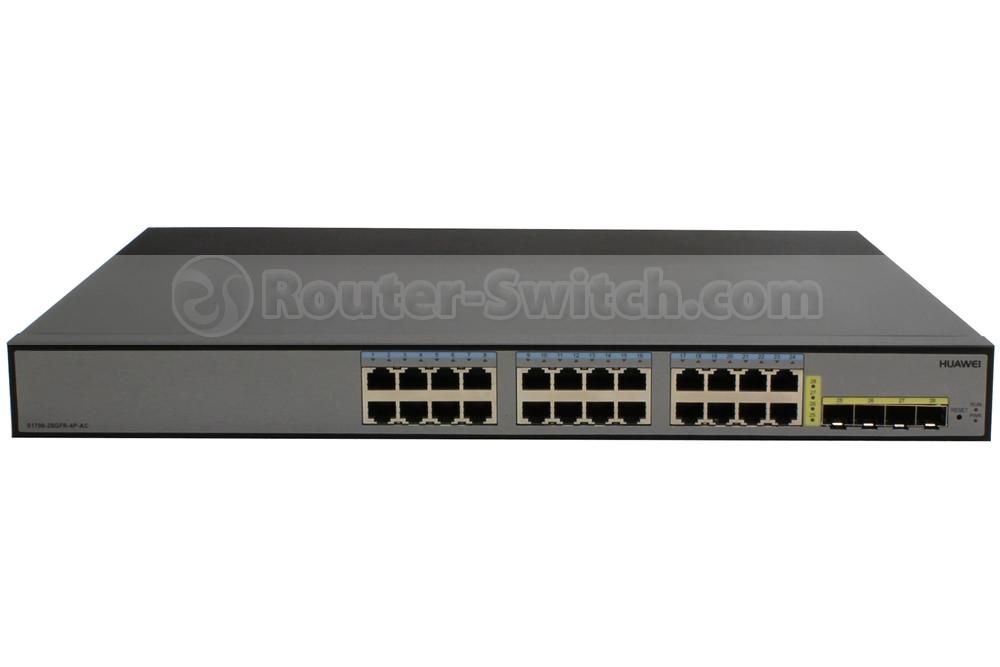

Quick Specs Figure 1 shows the appearance of S1700-28GFR-4P-AC.

Table 1 shows the Quick Specs.

Type	Huawei S1700 Web/SNMP-based Switch
Downlink Ports	24 Ethernet 10/100/1,000 ports
Uplink Ports	4 Gig SFP
MAC Address Table	8K MAC
Dimensions in mm (W x D x H)	442 mm x 220 mm x 43.6 mm
Input Voltage	100V to 240V AC, 50 Hz/60 Hz
EEE	Supported
Power Consumption	< 30W
Operating Temperature	0°C to 45°C
Humidity (non-condensing)	10% to 90%
Heat Dissipation	Fan-free natural heat dissipation
Security features	Hardware ACLPacket filtering based on MAC addressesMAC address authenticationPort-based 802.1x authenticationRADIUS authenticationPortal authenticationPort isolationStorm suppressionAttack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacksDHCP snooping
VLANs	4K VLANsAccess portTrunk portHybrid portManagement VLANVoice VLAN
QoS	PQ and WRREight queues on each portQueue scheduling based on 802.1p or DSCP priorities
STP	STP (IEEE 802.1d)RSTP (IEEE 802.1w)MSTP (IEEE 802.1s)
Multicast	IGMP snooping
Routing Features	IPv4 and IPv6 static routingRIP, RIPng, OSPF (S1720-E series)
Link Aggregation	12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG64 Link Aggregation Groups (S1720 series)120 Link Aggregation Groups (S1720-E series)Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Broadcast Storm Suppression	Broadcast storm suppression based on the interface rateAlarm sending when the traffic rate reaches the upper limit
Device Management	SNMPWeb system network management (HTTPS)DHCP clientUser password protectionOne-key restorationCLI configuration (S1720/S1720-E series)Console port (S1720/S1720-E series)
Device Maintenance	Remote Network Monitoring (RMON)System logPing and tracerouteVirtual Cable Test (VCT)Link Layer Discovery Protocol (LLDP)
