Sold out
S1720X-16XWR-E
Model: S1720X-16XWR-E – Huawei S1700 Series Switches
Details: S1720X-16XWR Bundle(16 10 Gig SFP+,with license,AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S1720X-16XWR-E Overview

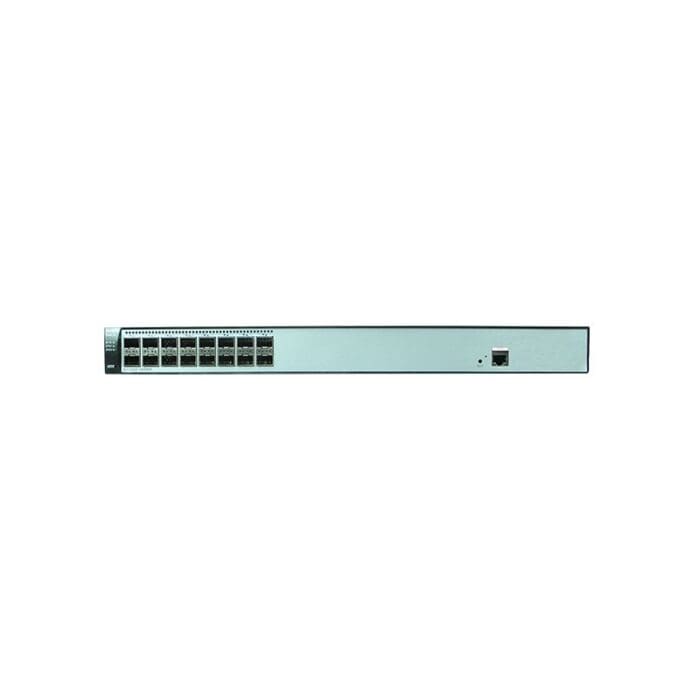

Quick Specs Figure 1 shows the appearance of S1720X-16XWR-E.
Table 1 shows the Quick Specs.
| Downlink port | 16 10 Gig SFP+ |
| MAC Address Table | 32K MAC |
| Routing Feature | supportIPv4、IPv6 static routing |
| Dimensions mm (W*D *H) | 420*220*43.6 |
| Input voltage | 100V-240V AC，50~60Hz |
| EEE | support |
| Switching Capacity | 680 Gbps |
| Forwarding Performance | 240 Mpps |
| Power Consumption | 63.1W |
| Operating temperature | 0℃～45℃ |
| Humidity (non-condensing) | 5%~95% |
| Heat dissipation | Heat dissipation using fans supporting intelligent speed adjustment |
| Device Management | Web system network managementDHCP clientOne-key restorationNote: You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license |
| Fixed Ports | 16 x 10GBase-X optical portsNote: These ports can be used for both upstream and downstream transmission. |
| VLAN Features | 256 VLANs (S1720 Series: 4K)Access portTrunk portHybrid portManagement VLANVoice VLAN |
| IP Routing | IPv4 and IPv6 static routing |
| Device Maintenance | System logPingVirtual Cable Test (VCT)Link Layer Discovery Protocol (LLDP) |
