S1728GWR-4P-AC
Model: S1728GWR-4P-AC Huawei S1700 Series Switch
Details: S1728GWR-4P-AC (24 Gigabit Ethernet ports ,4 Gig SFP,AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S1728GWR-4P-AC Overview

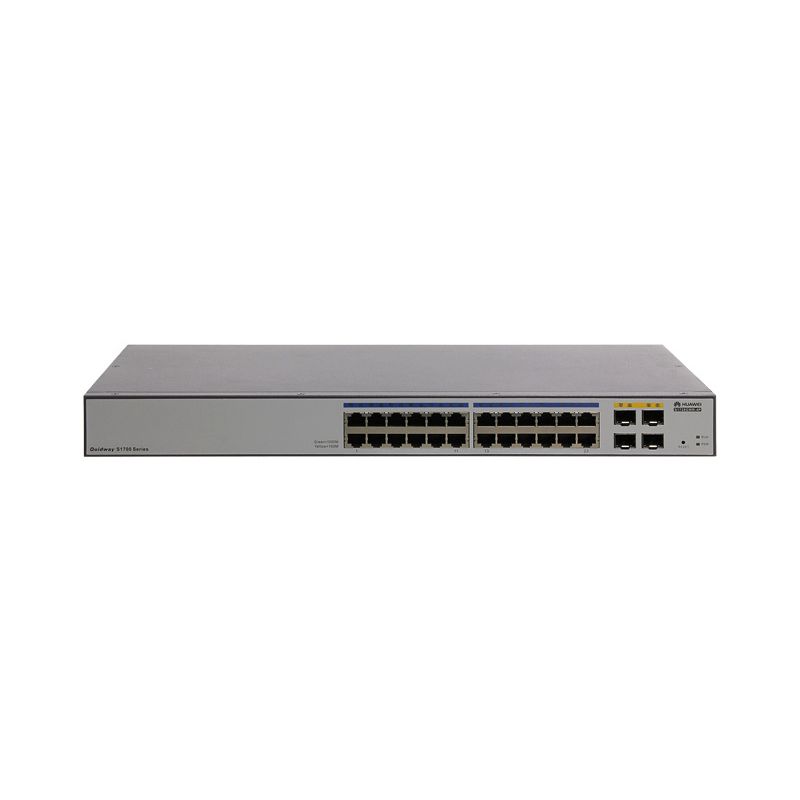

Quick Specs Figure 1 shows the appearance of S1728GWR-4P-AC.
Table 1 shows the Quick Specs.
| Type | Huawei S1700 Web-managed Switch |
| Downlink Ports | 24 Ethernet 10/100/1,000 ports |
| Uplink Ports | 4 Gig SFP |
| MAC Address Table | 8K MAC |
| Dimensions in mm (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Input Voltage | 100V to 240V AC, 50 Hz/60 Hz |
| EEE | Supported |
| Power Consumption | < 15W |
| Operating Temperature | 0°C to 45°C |
| Humidity (non-condensing) | 5% to 90% |
| Heat Dissipation | Fan-free natural heat dissipation |
| Security features | Packet filtering based on MAC addressesMAC address authentication (S1720 Series)Port-based 802.1x authenticationRADIUS authenticationPortal authentication (S1720 Series)Port isolationStorm suppression (S1720 Series)DHCP snooping (S1720 Series) |
| VLANs | 256 VLANs (S1720 Series: 4K)Access portTrunk portHybrid portManagement VLANVoice VLAN |
| QoS | PQ and WRRFour queues on each port (S1720 series: Eight)Queue scheduling based on 802.1p or DSCP priorities |
| STP | STP (IEEE 802.1d)RSTP (IEEE 802.1w)MSTP (IEEE 802.1s) (S1720 series) |
| Multicast | IGMP snooping |
| Routing Features | IPv4 and IPv6 static routing (S1720 series) |
| Link Aggregation | 12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG64 Link Aggregation Groups (S1720 series)Static LACP |
| Port Mirroring | Port-based bi-directional flow mirroring |
| Broadcast Storm Suppression | Broadcast storm suppression based on the interface rateAlarm sending when the traffic rate reaches the upper limit |
| Device Management | Web system network managementDHCP clientOne-key restoration |
| Device Maintenance | System logPingVirtual Cable Test (VCT)Link Layer Discovery Protocol (LLDP) |
